Lower limb support IB-SK/1R

Lower limb support IB-SK/1R
4green
Knee braceKnee brace
BreathableBreathable
Class 1 medical deviceClass 1 medical device
CottonCotton
InnovativeInnovative
Latex-freeLatex-free
Magnetic joint 1R orthodesignMagnetic joint 1R orthodesign
Skin-friendlySkin-friendly

OPEN KNEE BRACE WITH 15° ROM ADJUSTMENT

Product description

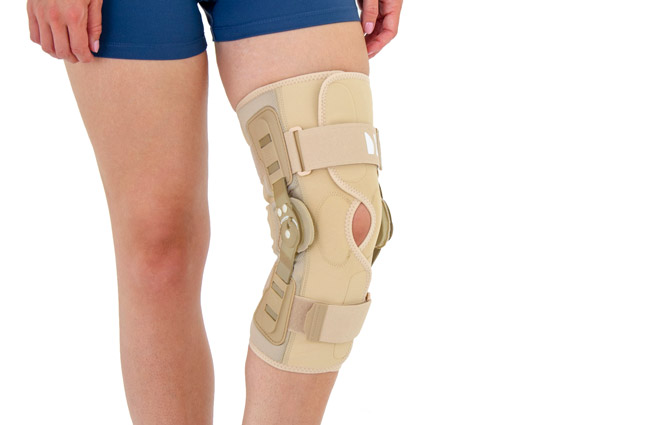

Light knee brace IB-SK/1R with the wrap around design is the professional medical device 1st class, which improves the gait and the rehabilitation process. The device contains four independent Velcro straps and two 2-axial anatomical side splints. This splints, during the movement, reflect the natural anatomical knee joint work, what prevents the changing of their position against the knee axial.
The IB braces group is the best solution, especially for seniors, with high quality and unrivalled price. Thanks to their sides stabilization, patients with chronic knee instability caused by joint degeneration, can walk without crutches and walking sticks. Furthermore, the IB braces has the wrap around construction, which is very helpful for putting it in and off.

IB-SK/1R is made of a structural material ProFit™.

profit

ProFit™ is a double-layer fabric that is elastic in all directions and fits to limb precisely. The external side is made of spandex providing excellent compression and absorbs muscle shocks in physical activity. The internal side consists of microfibre, cotton and elastane what makes it skin-friendly, breathable and provides velvet softness. ProFit™ is friendly and neutral for the skin and has Oeko-Tex Standard 100 certificate.

The side parts are made of innovative material called Active3D™.

active3d

Active3D™ is thermoformed fabric made of special foamed, cell-closed designed material. It reduces the pressure on the body or any abrasions made by orthopaedic stays and aluminum splints. It is fully waterproof fabric and does not absorb sweat. It’s easy to clean. Due to its features, the fabric is an excellent product for making medical orthopaedic braces and orthoses. ACTIVE 3D™ has various external self-gripping layers. Our material has special, thermoformed properties and may be shaped according to the functional goals of the final braces.

1R orthodesign splint



The brace has the excellent sides stabilization thanks to two splints with 1R drop lock, which provides 15° ROM adjustment. It prevents knee contractures and improves rehabilitation passively.

Anatomical shaped silicon pads



Each IB brace is equipped with two anatomical shaped silicon pads, which stabilizes and supports the patella.

Velcro straps with plastic ends





The IB braces have four Velcro straps with plastic ends, what make the using easier.

Purpose of use

IB-SK/1R was created for seniors suffered from chronic knee instability, caused joint degeneration and injuries.

  • after injury of the knee which didn’t require surgery (dislocation with damage of ligaments, muscle sprains and strains)
  • in postoperative rehabilitation as an prevention through knee contractures
  • joint degeneration and/or knee instability due to injury, illness in case of patients not qualified or refusing surgery treatment
  • atony of lower limbs in case of upright standing and learning to walk

Available sizes

Size Knee circumference How to measure
S 30-34 cm
(11,8″-13,4″)
How to measure - knee circumference
M 34-38 cm
(13,4″-15″)
L 38-42 cm
(15″-16,5″)
XL 42-46 cm
(16,5″-18,1″)
XXL 46-50 cm
(18,1″-19,7″)

Total length of product: 36 cm (14,2″)

1R orthodesign splints

1R orthodesign splint The orthopaedic splints 1R is the innovative solution with flexion and extension adjustment. The drop lock is very small (diameter: 30 mm) and provides 15° ROM adjustment. In addition, we apply the allen screws, which are mounted by steel pins and magnet. The most innovative is the blocking disk with the ratchet, which ensures required angle of ROM. In the short knee braces the splints 1R are universal, so they fit for both legs, but in the long knee braces the splints 1R have anatomic shape for right or left leg.

Downloads

Code IB-SK/1R
Trade Name LOWER-EXTREMITY SUPPORT
Model LOWER-EXTREMITY SUPPORT IB-SK/1R

CEMDClass I medical device in accordance with Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017. on medical devices.
