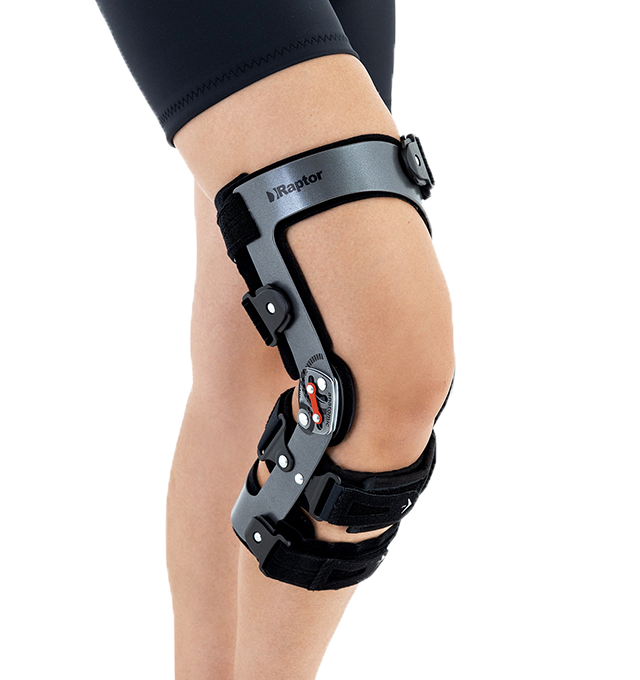

Lower limb support RAPTOR/2RA

Lower limb support RAPTOR/2RA
4sport-en
Knee braceKnee brace
Anatomic joint 2RAAnatomic joint 2RA
Class I medical deviceClass I medical device
InnovativeInnovative
Recommended by specialistsRecommended by specialists
WaterproofWaterproof
Brand: Code UNSPSC: Code UMDNS:

RAPTOR/2RA

DYNAMIC UPRIGHT KNEE FRAME WITH ADJUSTMENT IN EVERY 20 DEGREE

Description

POSTERIOR CRUCIATE LIGAMENT INJURY (PCL)

Posterior Cruciate Ligament (PCL) is strong, elastic bands of tissue, connecting tibia and femur. It’s more stronger than anterior cruciate ligament (ACL). PCL prevents the femur from sliding off the anterior edge of the tibia and to prevent the tibia from displacing posterior to the femur. Together with ACL forms knee joint.

PCL

Cruciate ligaments of knee allow us to live in active way. They support such physical activities as: jumping, swimming or running. Unfortunately, together with surrounding soft tissues, they may be damaged easily during daily activities. Very often, together with PCL, other ligaments and meniscus are torn.

The posterior cruciate ligament (PCL) is susceptible to injury during hyperflexion, hyperextension and in a mechanism known as a dashboard injury. PCL lies deep within the knee joint and due to this fact, high forces may torn it such as car accidents, which are 50% of total amount of isolated injury to the PCL. In this injury the knee experiences impact in a posterior direction during knee flexion toward the space above the tibia.

Furthermore, PCL injury is common in many sport disciplines. During sports activities, the PCL also can tear when an athlete falls forward and lands hard on a bent knee, which is common in football, basketball, soccer and especially rugby. Every sudden motion of knee twisting or jumping can result in ligament injury.
If you suffer from PCL injury, you can have one from 3 types of sprains, classified according to a traditional grading system:
1. Grade I – only microscopic tears in the ligament,
2. Grade II (moderate) – the ligament is partially torn, and the knee is somewhat unstable,
3. Grade III (severe) – the ligament is either completely torn or is separated at its end from the bone that it normally anchors, and the knee is more unstable.

In mostly cases (grade II and III), the treatment of injured posterior cruciate ligament do not require surgery and full recovery is achieved with physiotherapy and joint stabilization. In case of grade III, the surgery is necessary.

No matter if treatment is conservative or not, the professional knee ligament brace is crucial! The brace will provide knee stability and protect the PCL against further injuries.
To do that, many doctors and experts highly recommend our lightweight functional knee brace RAPTOR/2RA.

Product description

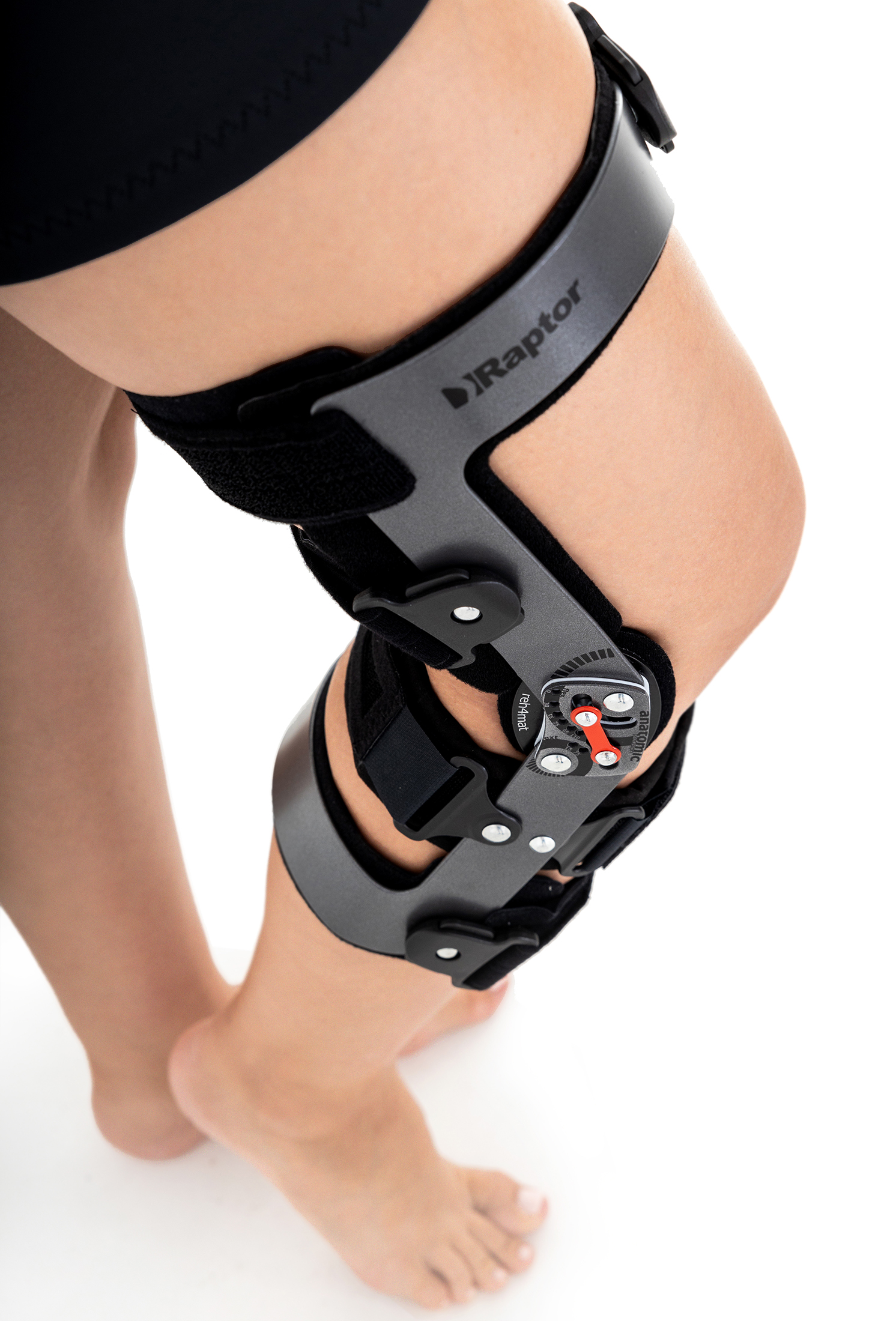

Functional knee ligament brace RAPTOR/2RA is an excellent treatment option in case of PCL injury and protection. RAPTOR/2RA knee brace is designed to resist varus and valgus forces applied to the knee and prevent against the posterior tibial translation (drawer syndrome).

The knee brace is made of extremely strong and lightweight aluminium 6061 T6 frame, which is used in aeronautics guarantees the best stabilization in the market. Additionally, the frame was hot covered by powder dye so that it would be resistant to moisture. Thanks to that solution, the frame is fully indifferent to water as well as sweat.

The knee brace is equipped with 5 straps and special cushions that are additionally protection and minimize brace migration.

Internal soft lining of the frame is made of comfort EVA foam, covered cotton and terry layer what helps to avoid the skin allergy.

waterproof

Our knee brace RAPTOR/2RA was tested in brine and passed it with flying colors!
RAPTOR/2RA is our waterproof guarantee!

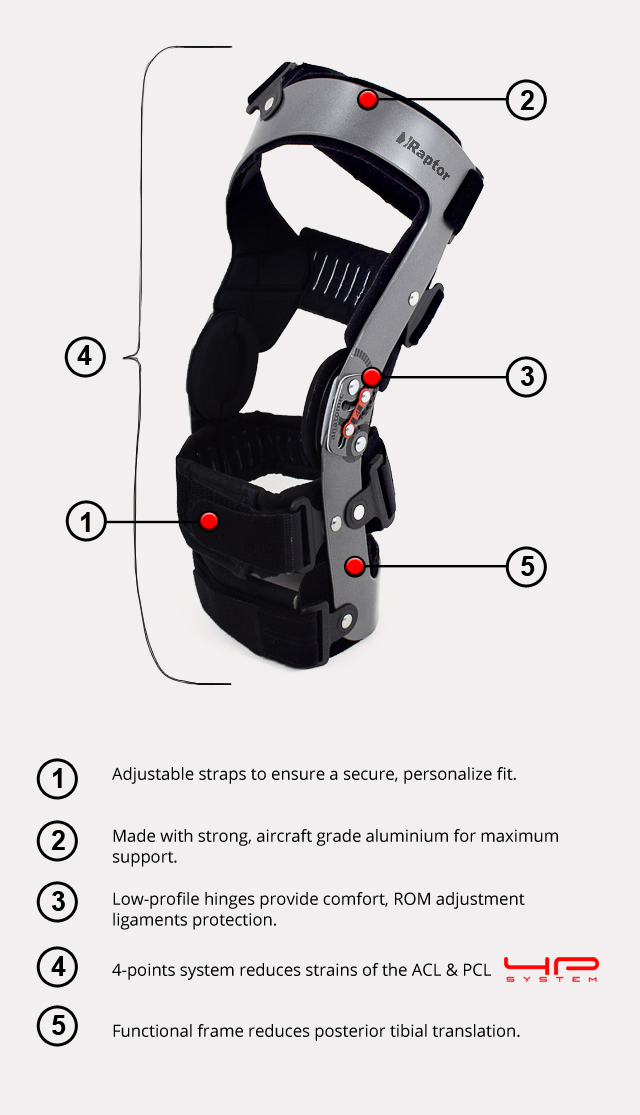

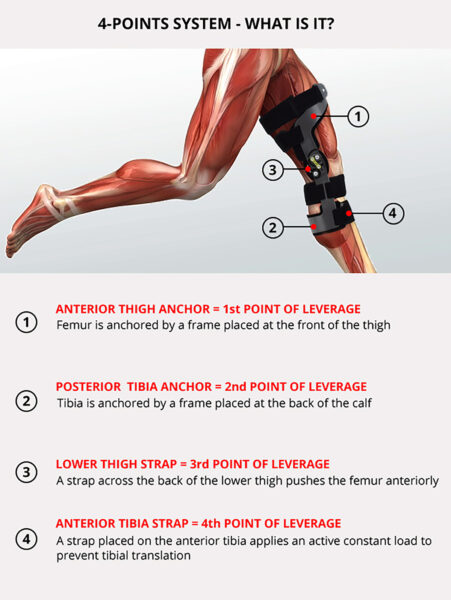

Functional knee brace RAPTOR/2RA supports your knee in sagittal and frontal plane. The brace is equipped with 4-point dynamic leverage system that helps prevent further knee injuries.

In case of posterior cruciate ligament (PCL) injury tibia goes backwards relative to femur. Front and rear construction of the frame allows to reduce posterior tibial translation (posterior drawer syndrome).

Due to lightweight aircraft aluminum you can use RAPTOR/2RA knee brace everywhere you need:

SPORT

SPORT

HOME

HOME

WORK

WORK

HOBBY

HOBBY

Purpose of use

– PCL instability
– injured/strain PCL
– injured/strain ACL
– MCL/LCL/ACL instability

Sizes

Size (A) Thigh circumference 15 cm above the center of the patella (B) Calf circumference 15 cm below the center of the patella How to measure
S 40 – 44 cm
15,7″ – 17,3″
30 – 34 cm
11,8″ – 13,4″
M 44 – 48 cm
17,3″ – 18,9″
34 – 38 cm
13,4″ – 15″
L 48 – 52 cm
17,3″ – 20,1″
38 – 42 cm
15″ – 16,5″
XL 52 – 56 cm
20,5″ – 22″
42 – 46 cm
16,5″ – 18,1″

Right and left leg specific.
Total length of the product:
S – XL: 39 cm

BRACE BAG INCLUDED

A brace made on customer’s request cannot be returned.

Setting up

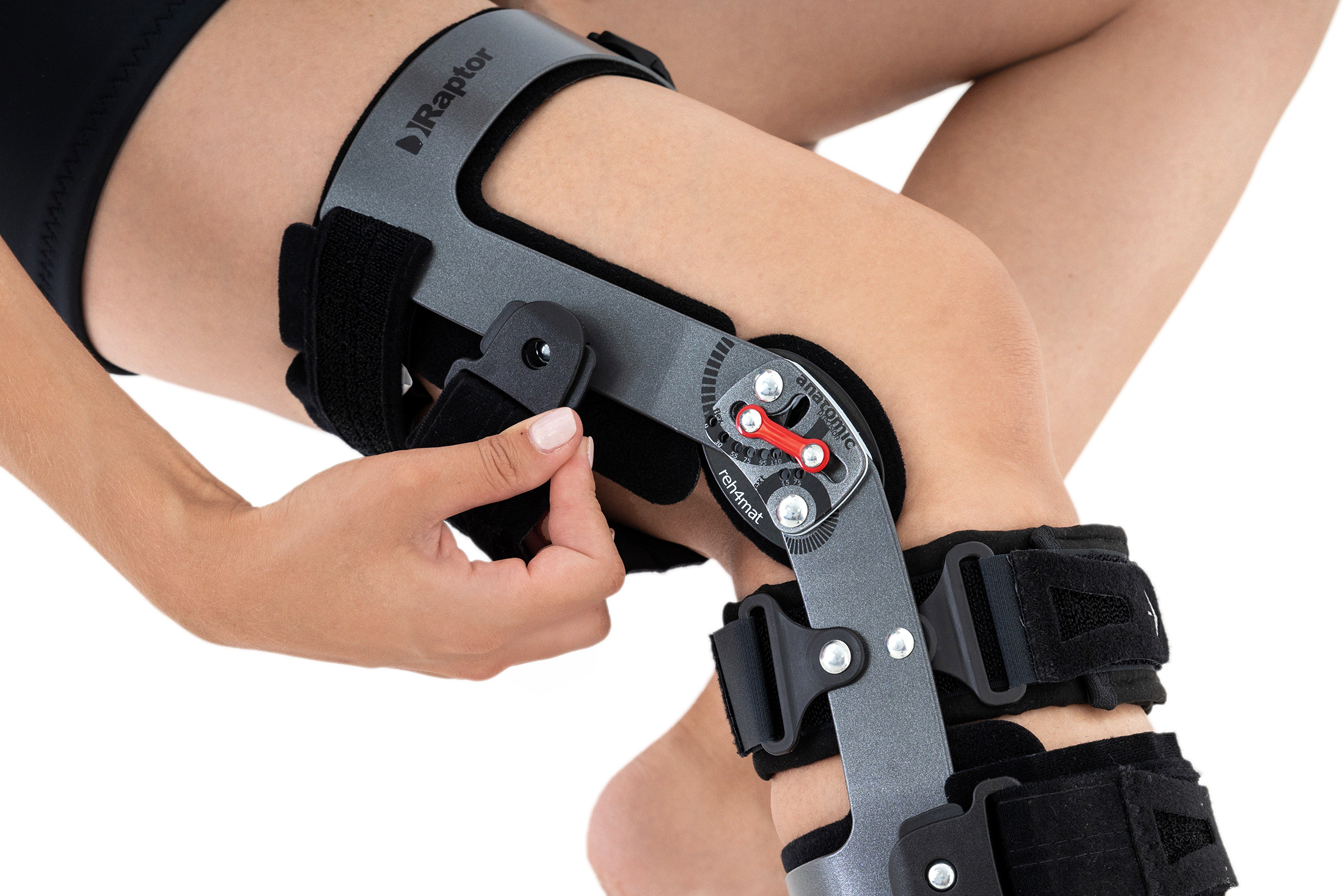

1. Unblock the drop-lock to obtain the maximum range of flexion and extension of the brace.

2. Unbuckle the separate stabilizing straps.

10. To avoid tangling of the straps, after unbuckling the straps, they should be connected to the velcro again.

11. Set the lower limb in 120 degrees flexion and insert the limb to the brace.

12. Interlace the lower shin strap (no 1) and fasten it.

13. Set the drop-lock on the knee joint precisely, interlace back thigh strap (no 2).

14. Interlace the back thigh strap (no 3). WARNING! The tension of the back strap results in displacing the drop-lock. The tension of the strap should be appropriate – so that the drop-lock would be placed accurately on the knee joint.

15. Flex the knee joint up to 70 degrees and in such position fit thightly the front strap (no 4). Note that soft anti-sliding cover should be placed in the middle of the shin.

16. Straighten the lower limb up and fit the back calf strap (no 5).

ATTENTION:

4. RAPTOR 2RA was equipped with soft anti-sliding tacky covers. They should be placed precisely so that the middle point would be in the lower limb axis. If needed, the covers may be cut a little bit. Such step will not damage the frame and there is no need to protect it additionally.

5. Circumferencial straps of RAPTOR 2RA are equipped with hook and loop fastener. Moreover they are internal regulation systém that let a patient set the strap individually according to his needs.

6. If needed, the internal soft part can be removed from the frame – a patient may hand-wash it.Do not disinfect it with chlorine, do not spin, etc.

REPLACEMENT ITEMS

– a set of 3D covers
– a set of 3D covers and circumferential strips

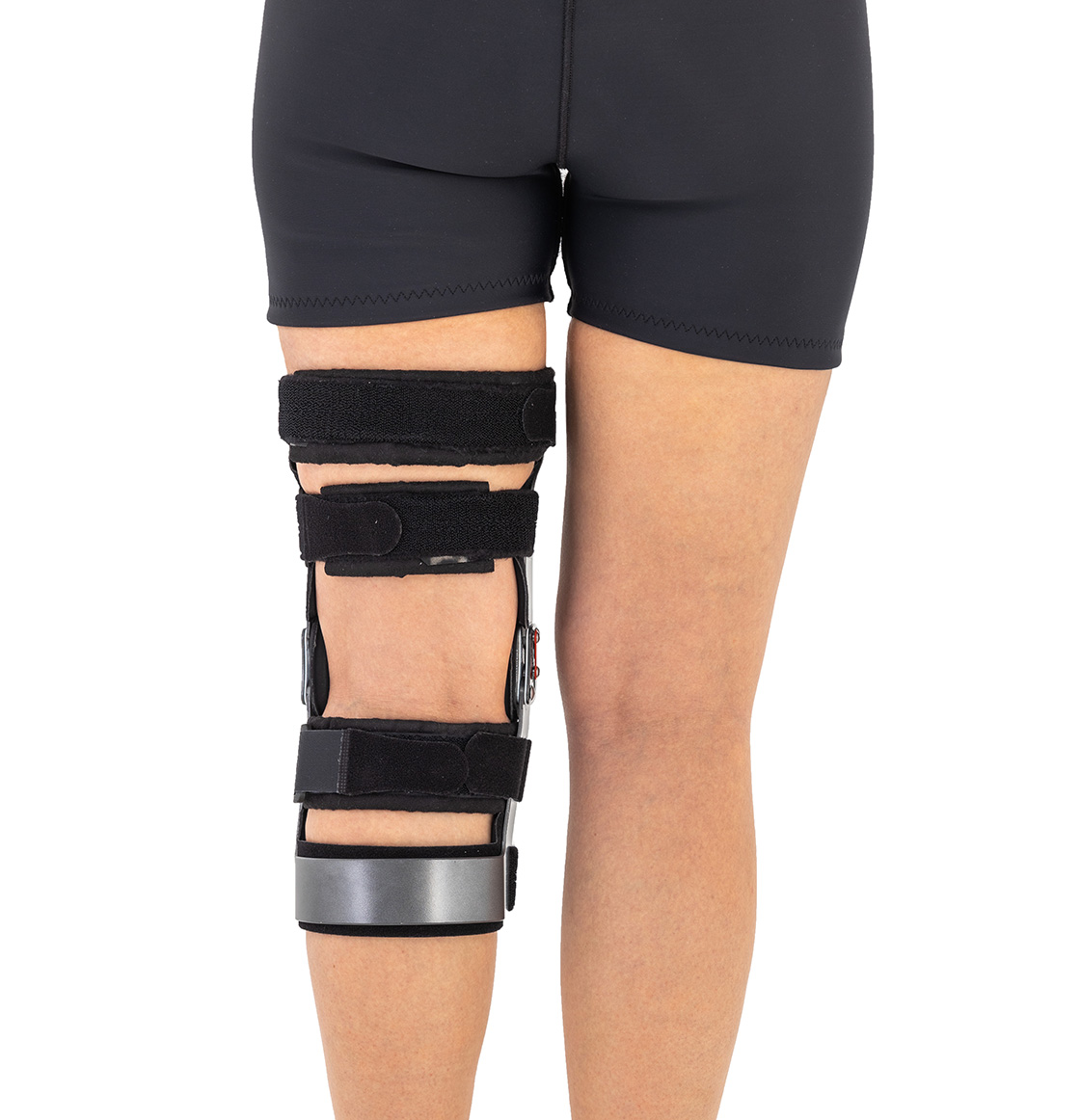

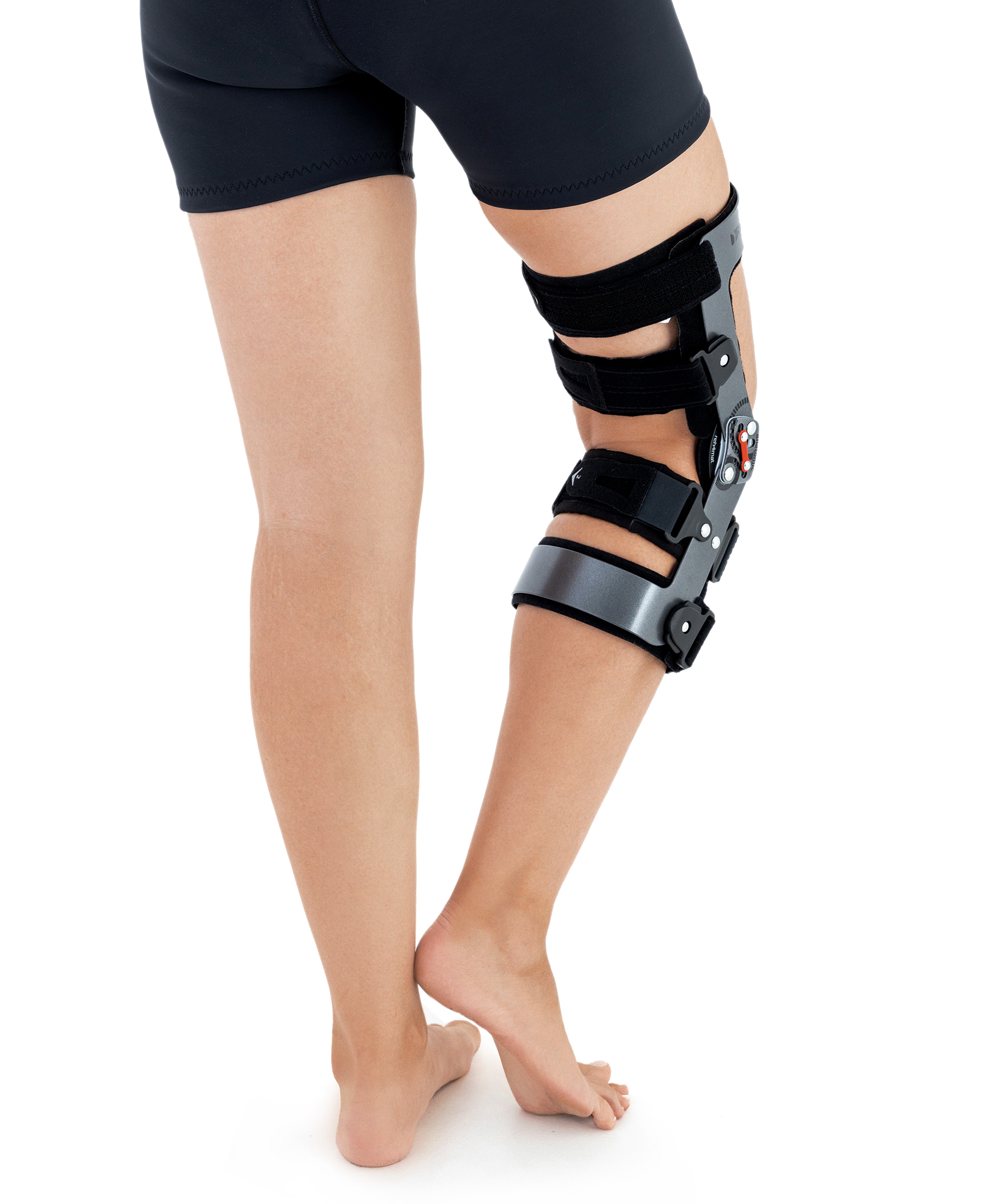

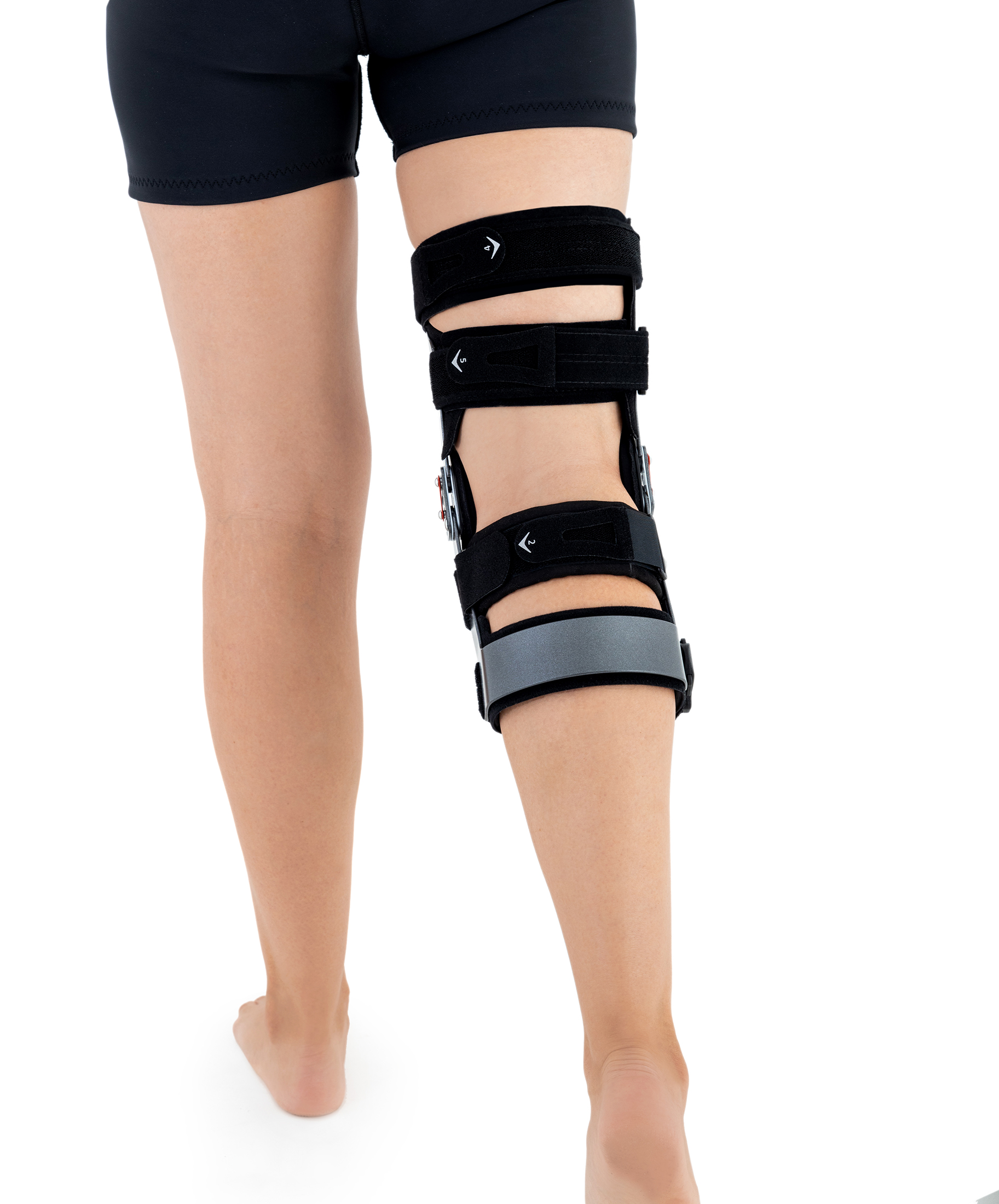

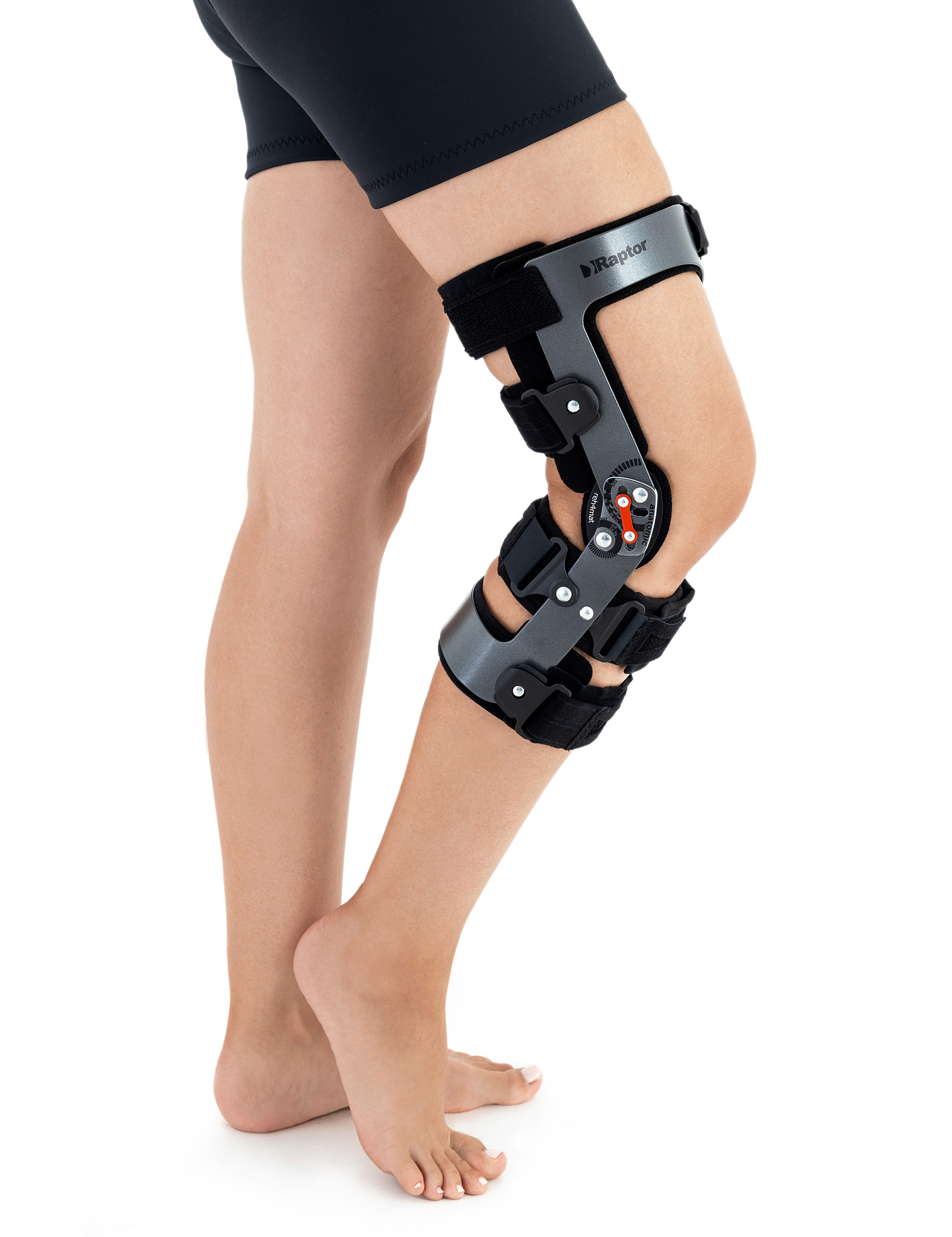

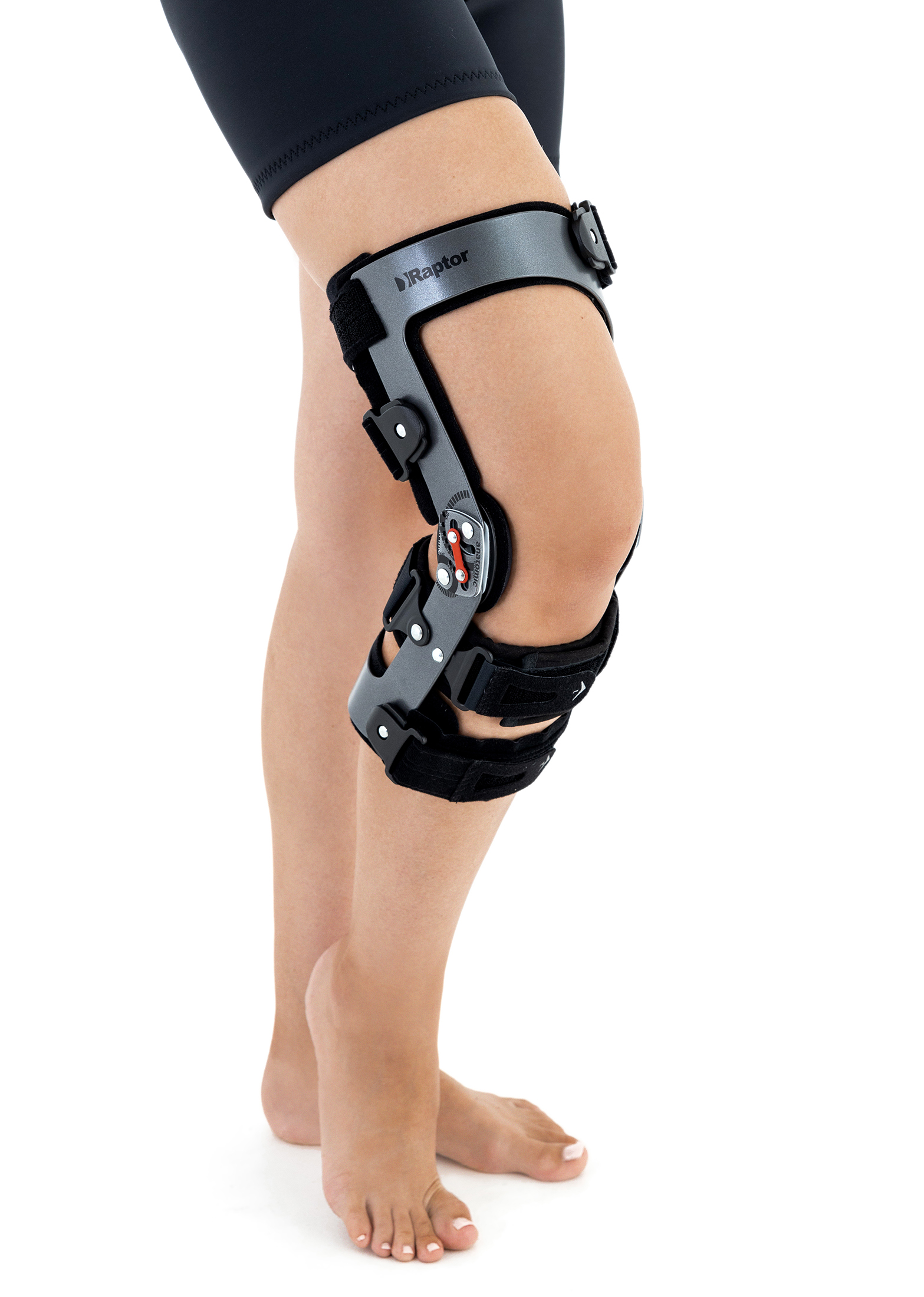

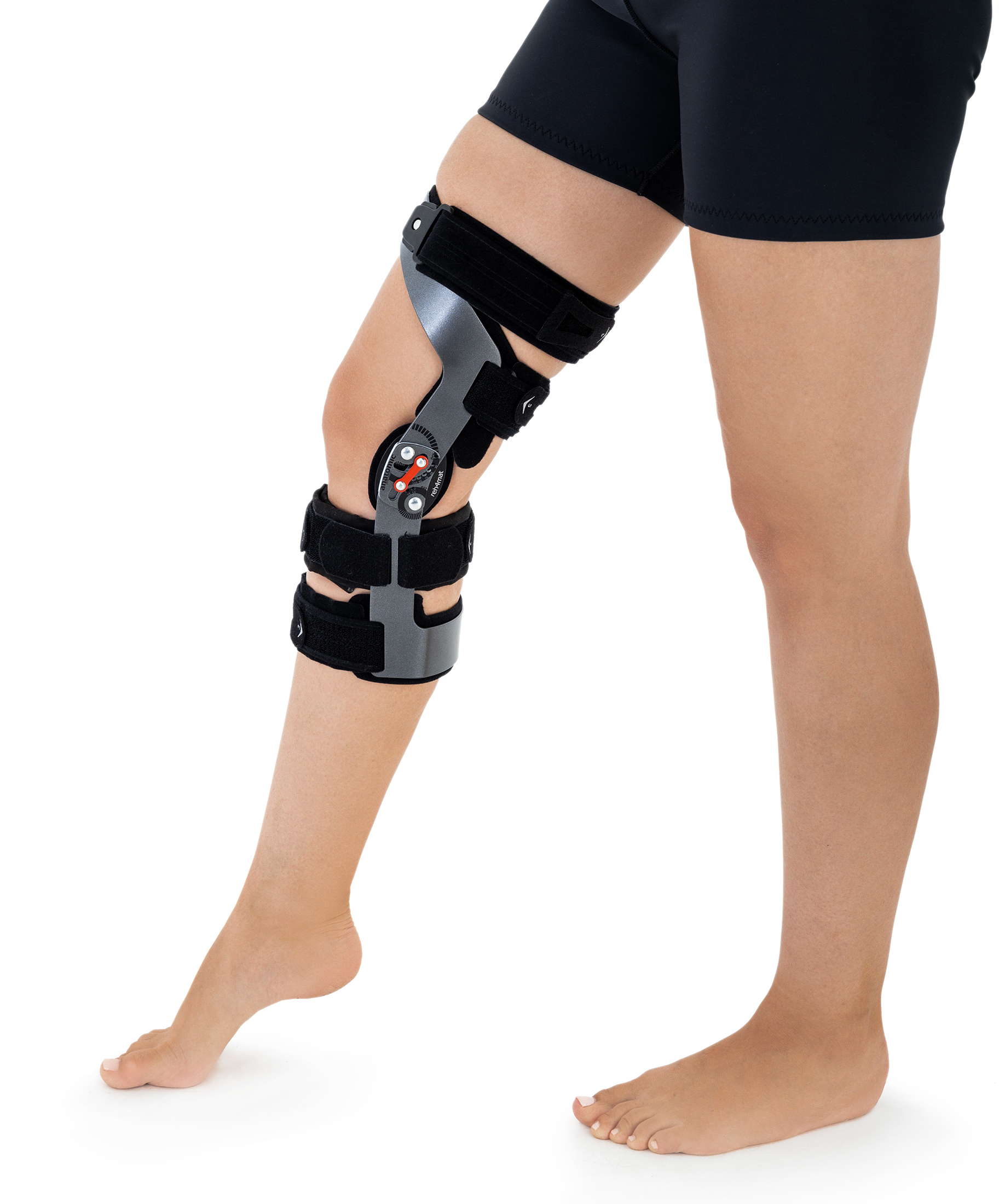

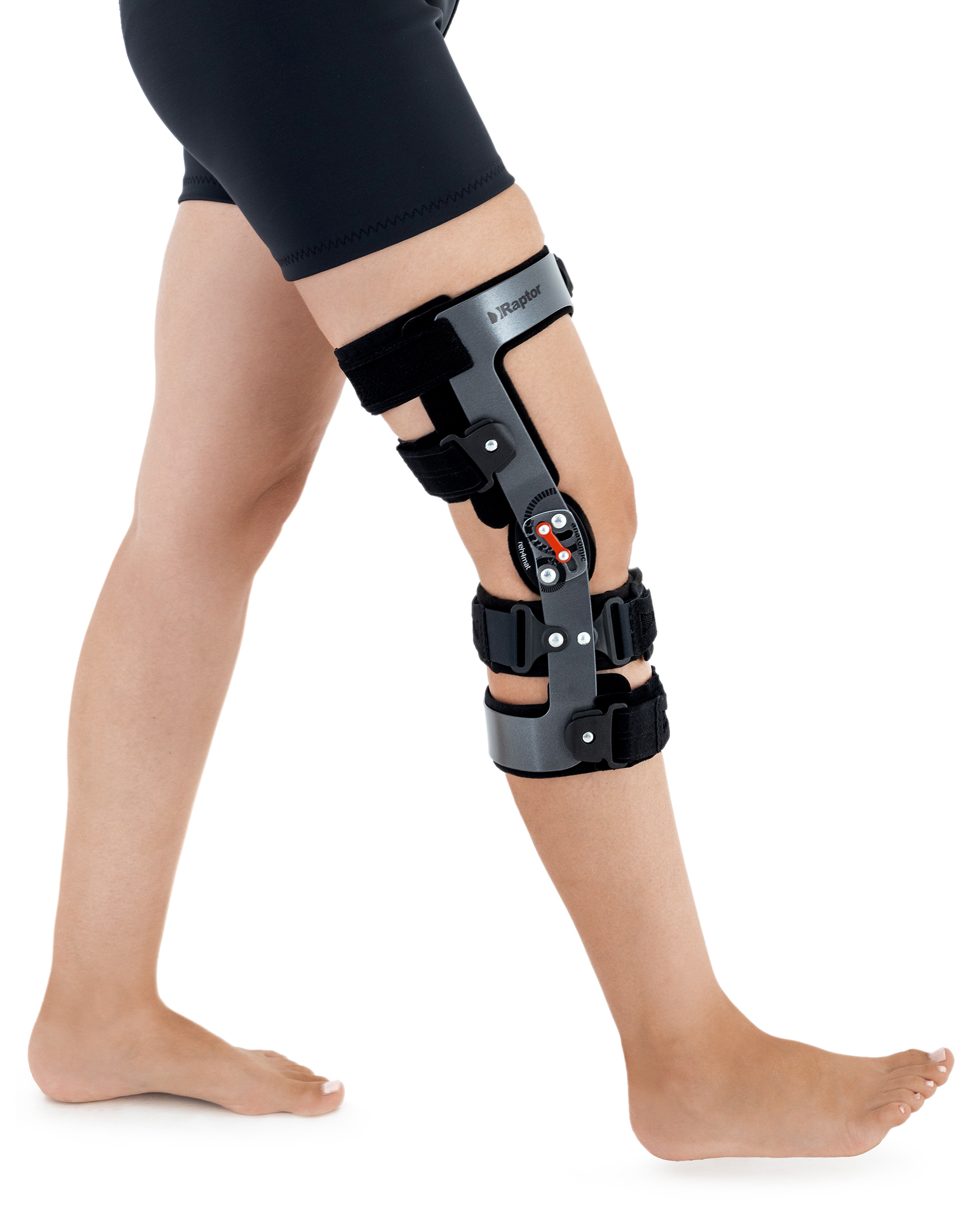

Gallery

Click on the photo to enlarge

//////////

Technology

MATERIALS

Active3D™

Active3D™ is thermoformed fabric made of special foamed, cell-closed designed material. It reduces the pressure on the body or any abrasions made by orthopaedic stays and aluminum splints. It is fully waterproof fabric and does not absorb sweat. It’s easy to clean. Due to its features, the fabric is an excellent product for making medical orthopaedic braces and orthoses. ACTIVE 3D™ has various external self-gripping layers. Our material has special, thermoformed properties and may be shaped according to the functional goals of the final braces.

STIFFENINGS

Splint 2RA Precision

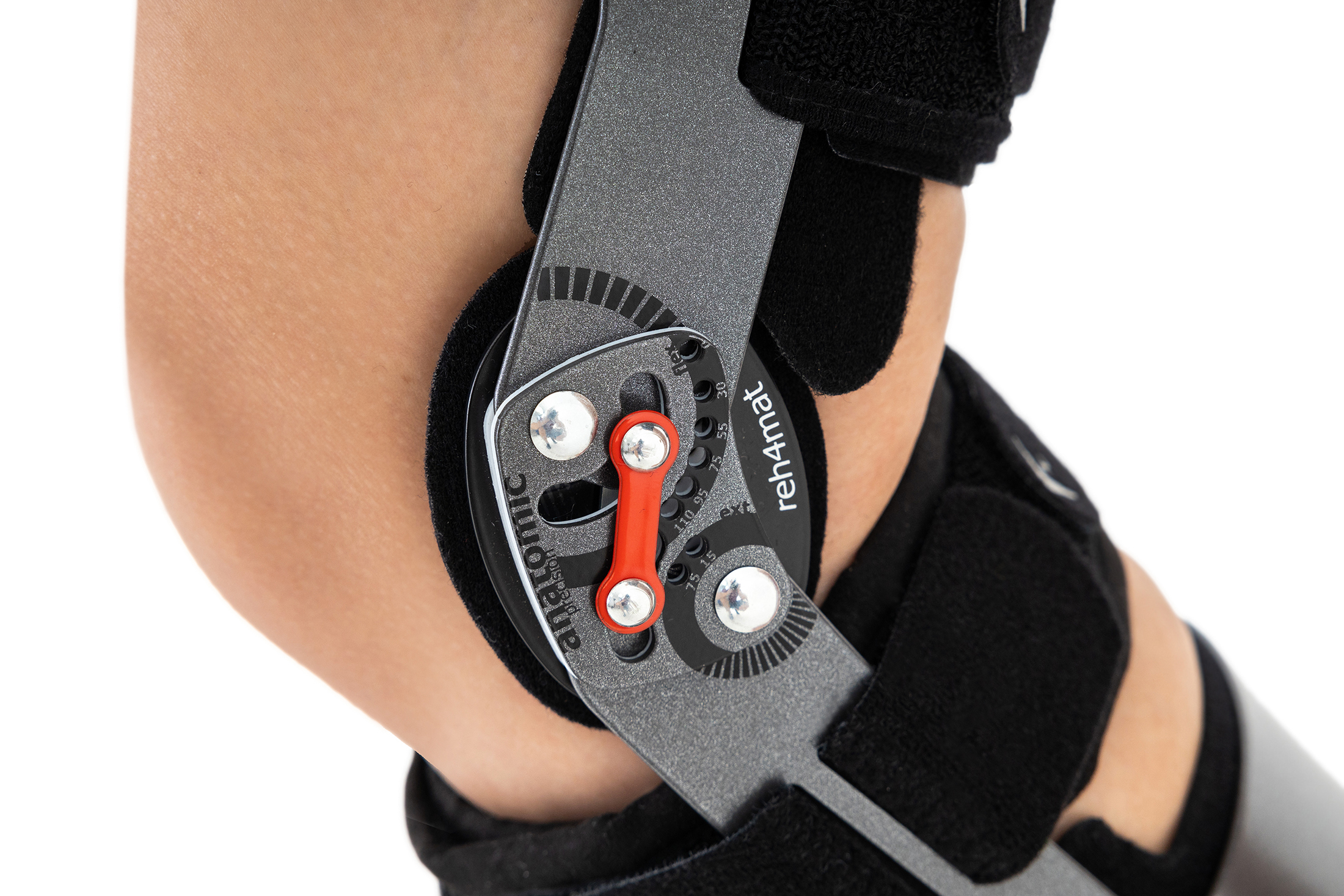

Szyny 2RA PrecisionSplints 2RA Precision are a double axis anatomic splints which reflect the knee movement and during performance do not change their position towards the joint axis. Splints 2RA are double axis polycentric splints, with coupling mechanism with two main conductive elements which move of parabolic tracks. Such splints are mainly used in all knee joint braces and, apart from angle adjustment, the high lateral knee stabilization is very important. The splints are manufactured with high quality of sanded aluminium, durable cover which what makes splints neutral to the influence of sweat and salt. Flexion and extension angle adjustment is possible with special allen screws. Every brace is equipped with special Allen key which is necessary for adjustment. Anatomic splints provides hyperextension block, 30°, 55°, 75°, 95°, 110° flexion and 15° or 75° extension. The angle adjustment clock is secured from manipulation by unauthorized people. Standard length of the splints is: 290 and 390 mm. The splint and its design are patented in European Union by Reh4Mat company.

PADDINGS

3D supports

3D relief supports are independent technical solutions to relieve the rigid elements of a given orthosis. These elements are made of supporting foams or EVA foam. These foams are connected with various types of skin-friendly materials and materials with an adhesive function. These pads have the appropriate shape and color adapted to the type of orthosis. They relieve both metal elements of orthoses, such as splints, stays, underwires and orthopedic drop locks, as well as other elements that should not come into direct contact with the patient's skin. These pads have an anatomical shape and are made of comfortable foam with proper hardness and elasticity, guaranteeing the proper therapeutic effect.

Setting up

Downloads

Accessories

Code RAPTOR/2RA
Trade Name LOWER-EXTREMITY SUPPORT
Model RAPTOR/2RA

ON OUR WEBSITE WE PRESENT MEDICAL DEVICES.
USE THEM ACCORDING TO THE INSTRUCTIONS FOR USE OR LABEL.

CEMDClass I medical device in accordance with Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017. on medical devices.

MANUFACTURER / ADVERTISING ENTITY: REH4MAT Sp. z o.o.
