AM-SL-04 UNIVERSAL ROM HINGED ELBOW BRACE

ELBOW JOINT INJURIES

Elbow joint injuries are among the most common upper limb injuries and may include ligament damage, dislocations, periarticular fractures, and overload of musculo-tendinous structures. They often result in pain, swelling, limited range of motion, and joint instability, which hinder daily activities and delay recovery.

The use of the AM-SL-04 range-of-motion elbow brace allows for controlled guidance of elbow movement, protection of injured structures, and prevention of undesired ranges of flexion and extension.

Product’s description:

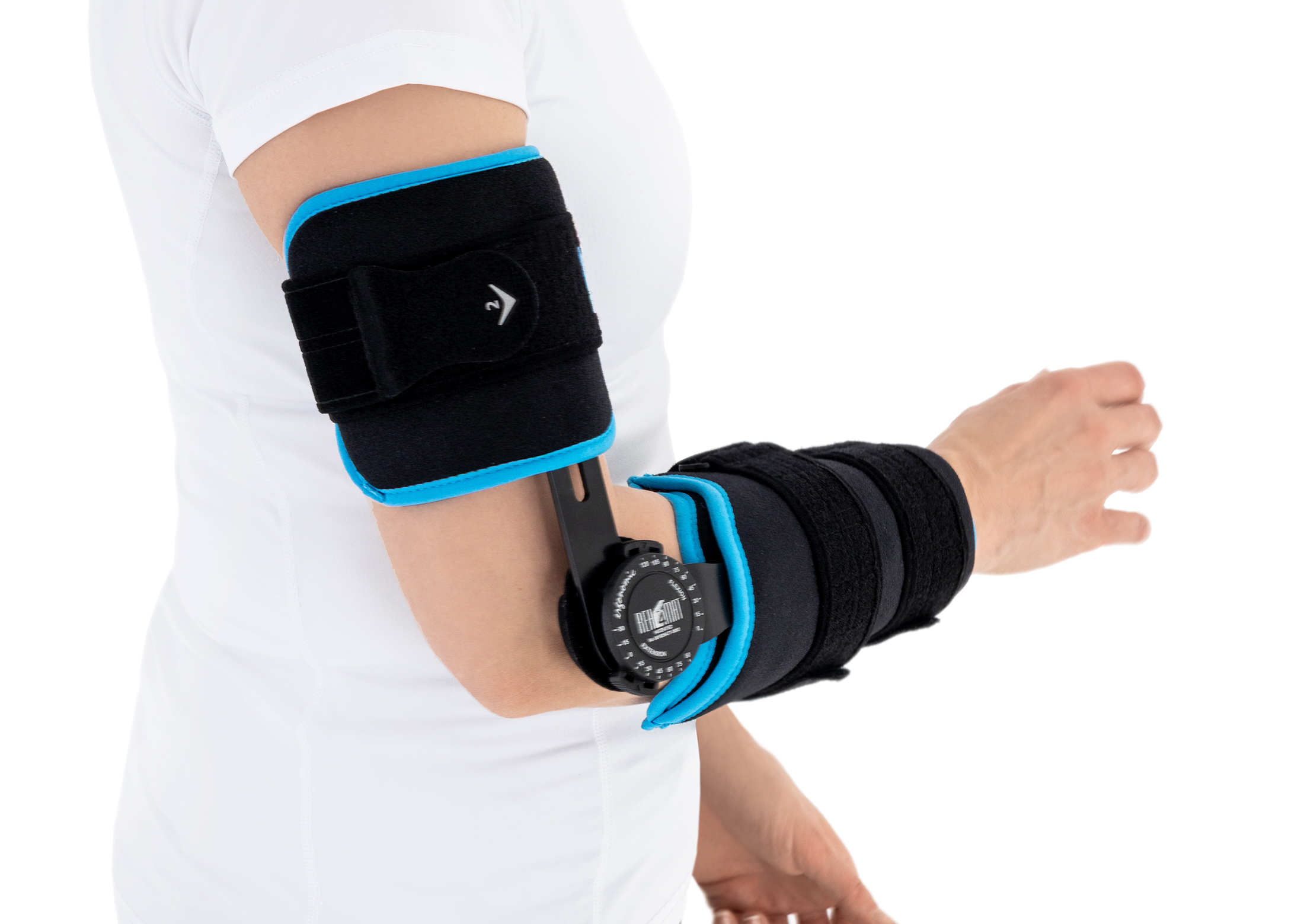

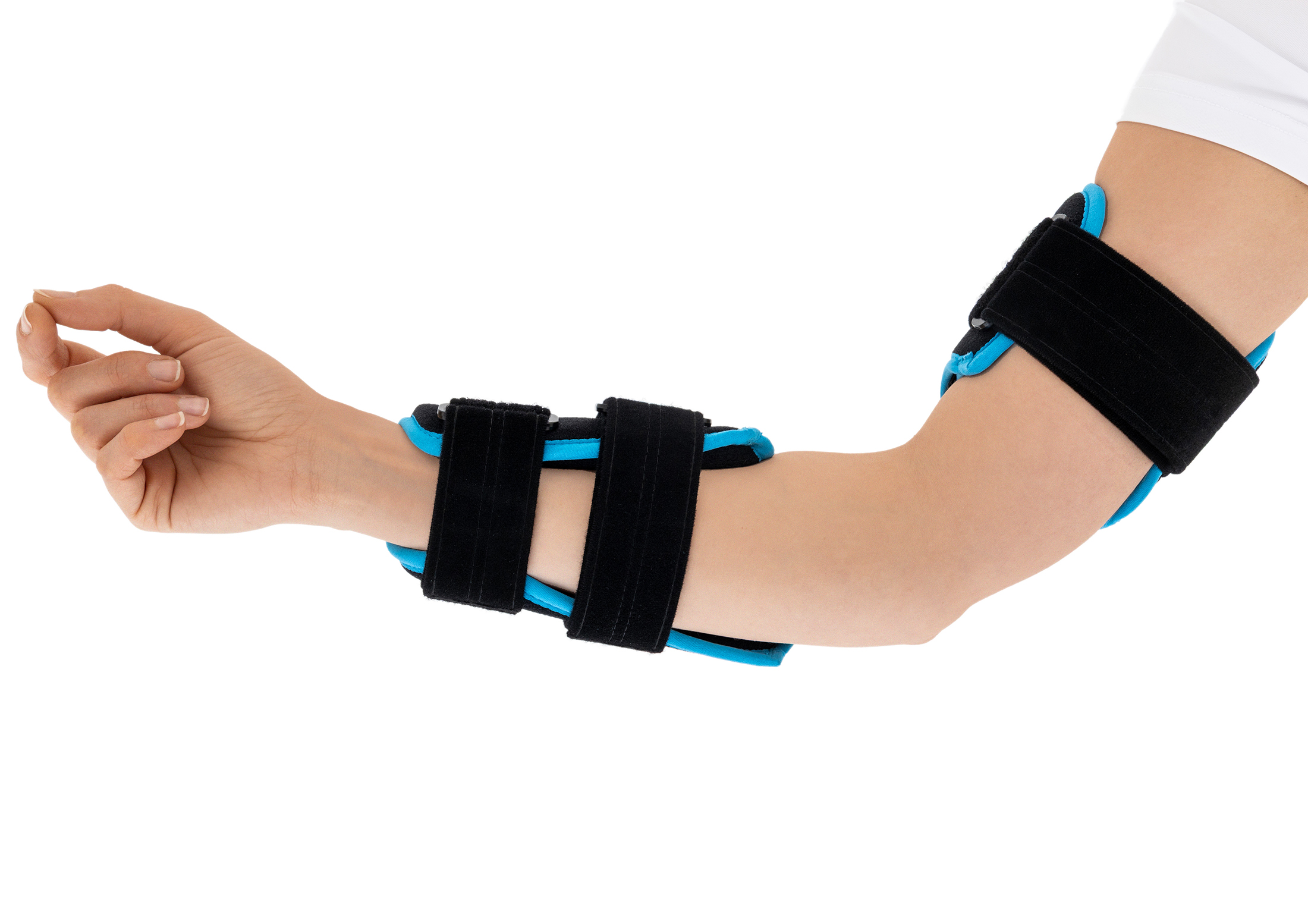

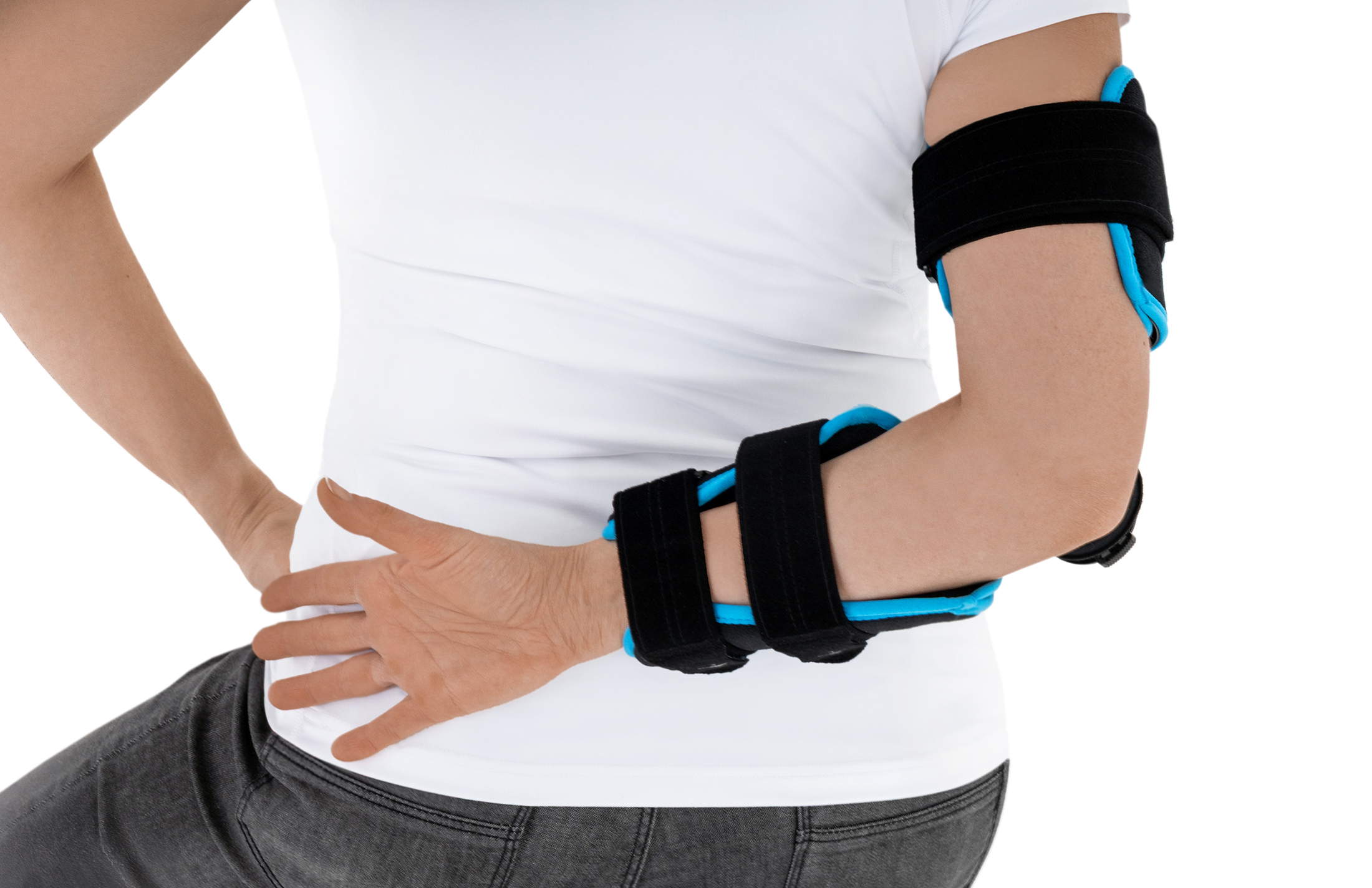

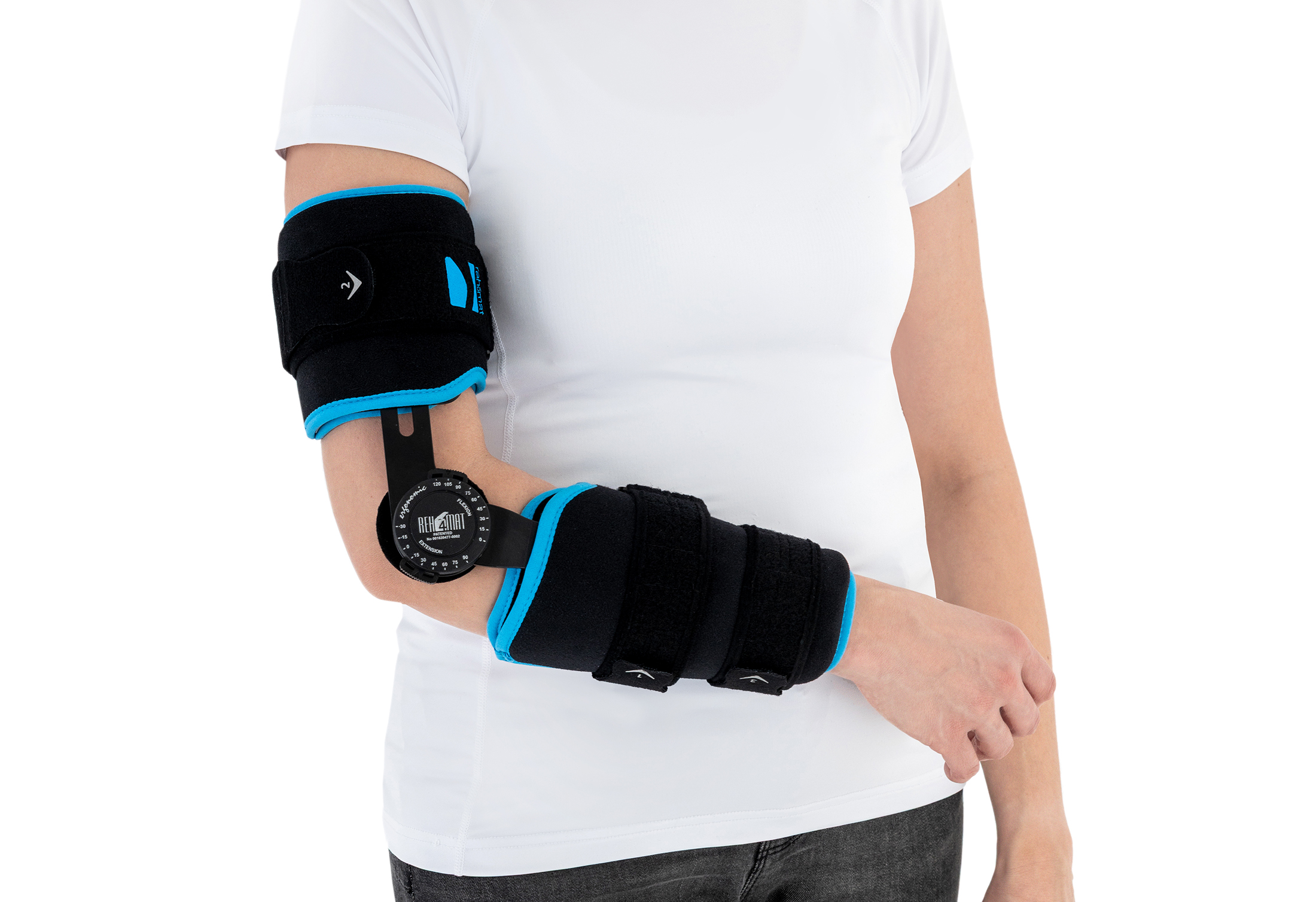

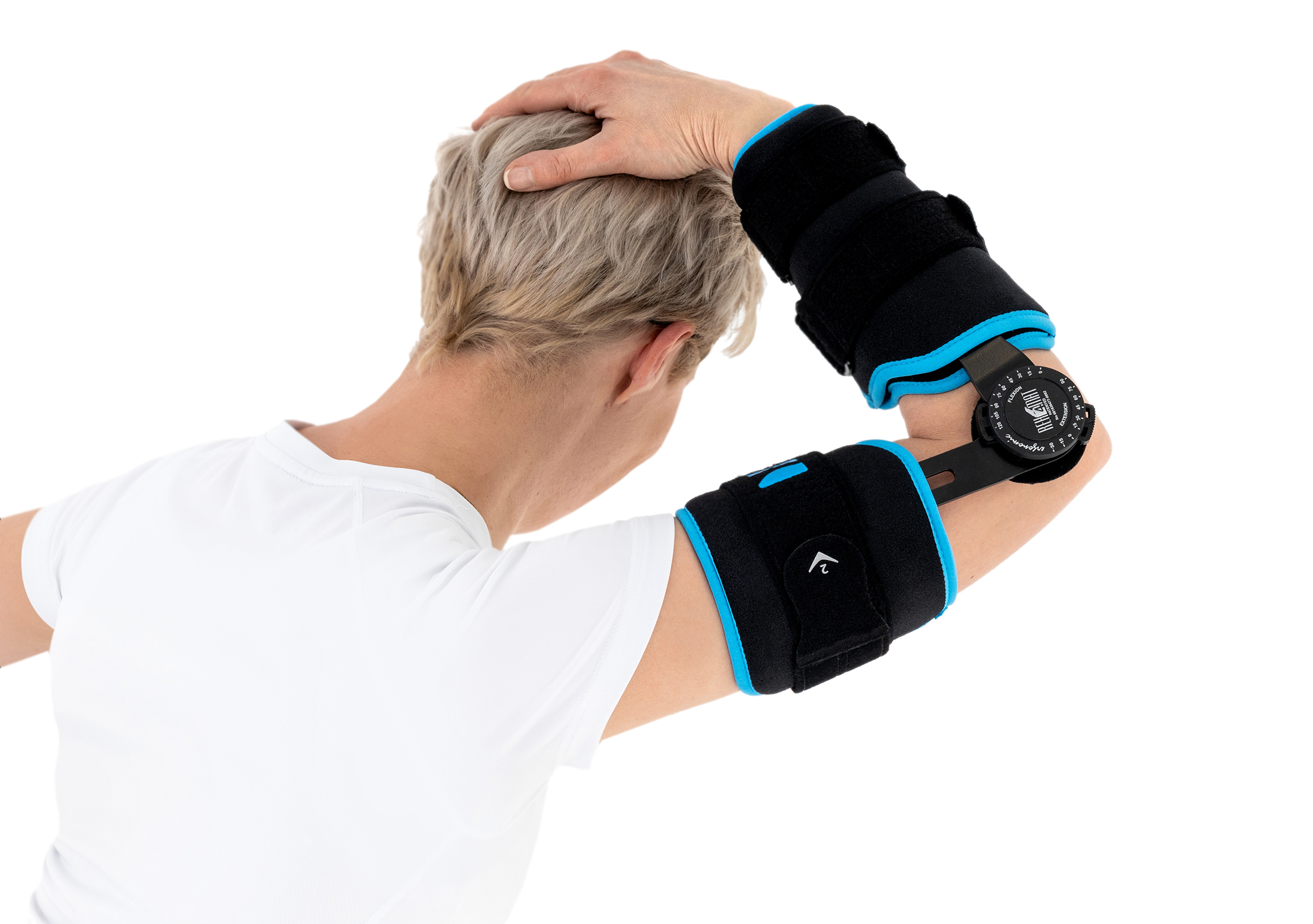

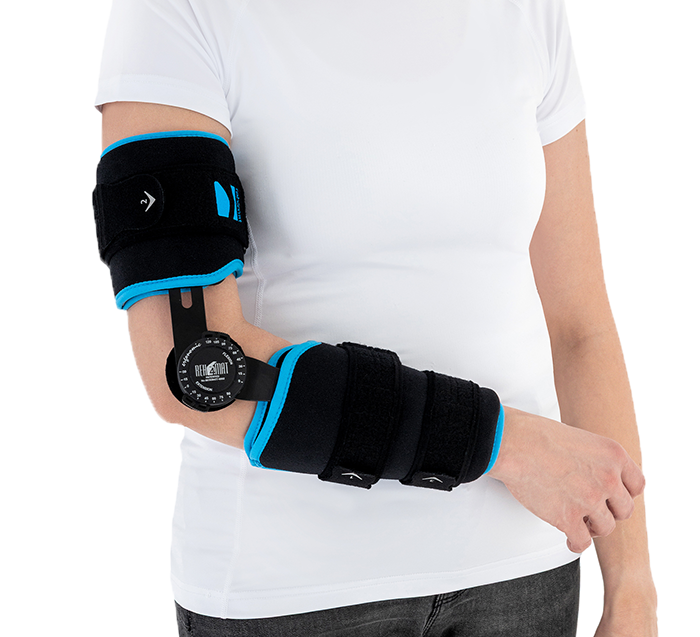

The AM-SL-04 hinge lateral elbow brace stabilizes the joint while enabling a gradual increase in mobility during rehabilitation, supporting the healing process and reducing the risk of re-injury.

The brace is made of skin-friendly, breathable materials. Its anatomical design keeps the joint in the proper alignment, providing effective stabilization without compromising wearing comfort.

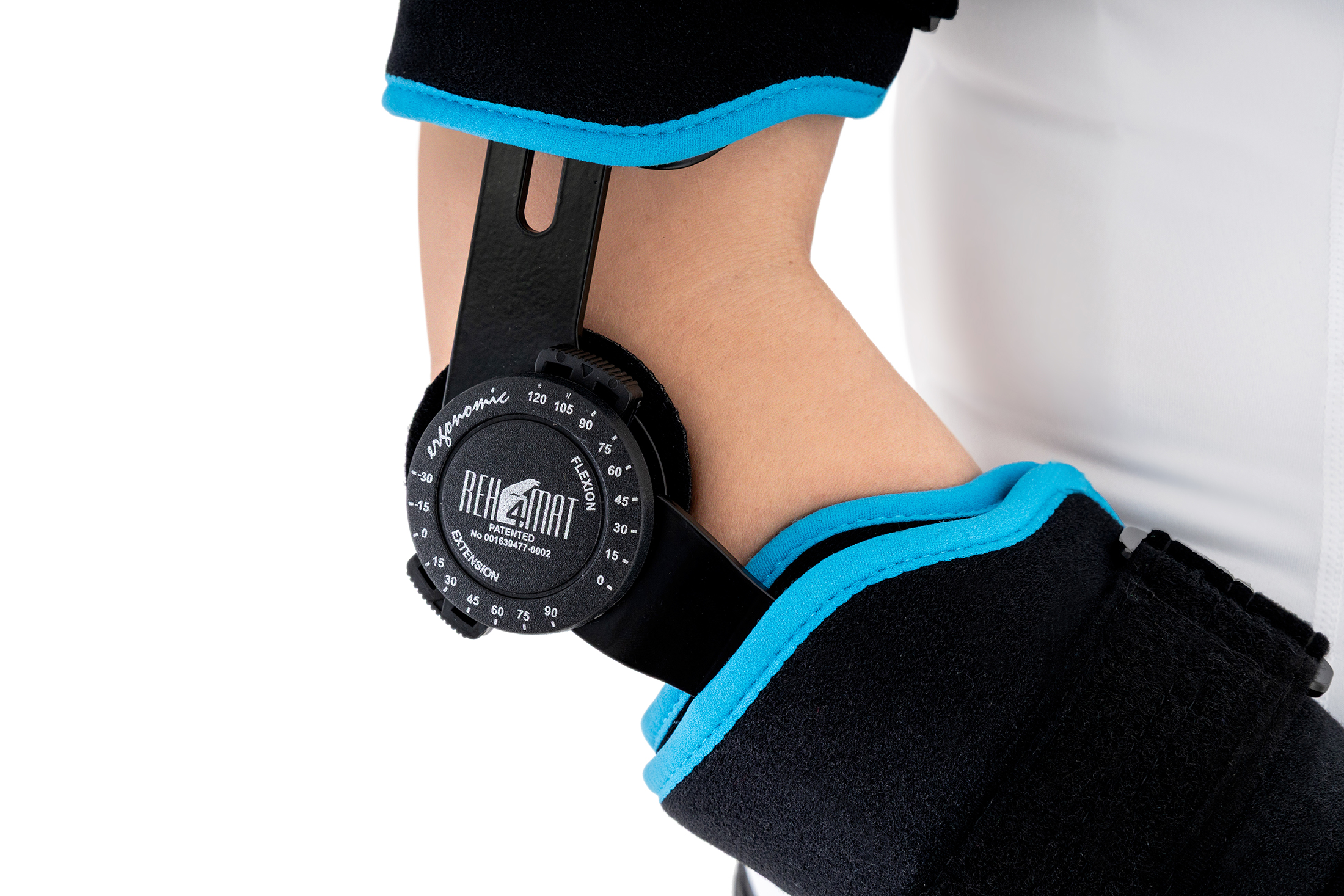

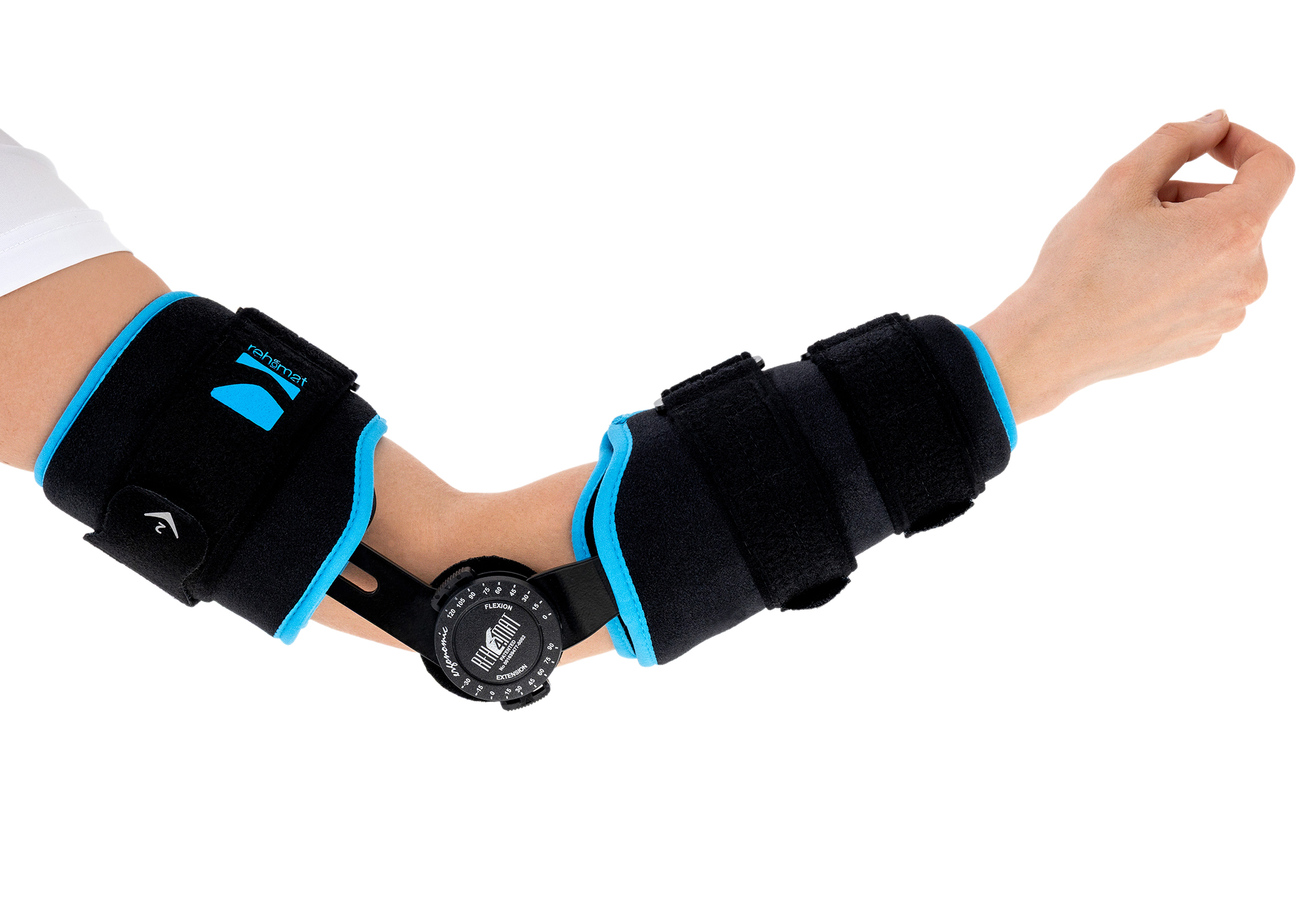

Equipped with one lateral hinge featuring a precise drop-lock mechanism with ROM adjustment in 15-degree increments, the brace enables controlled elbow motion during conservative treatment as well as post-injury and post-operative rehabilitation. The dial allows gradual adjustment of flexion and extension angles, including full range-of-motion locking, in accordance with a doctor’s or physical therapist’s recommendations.

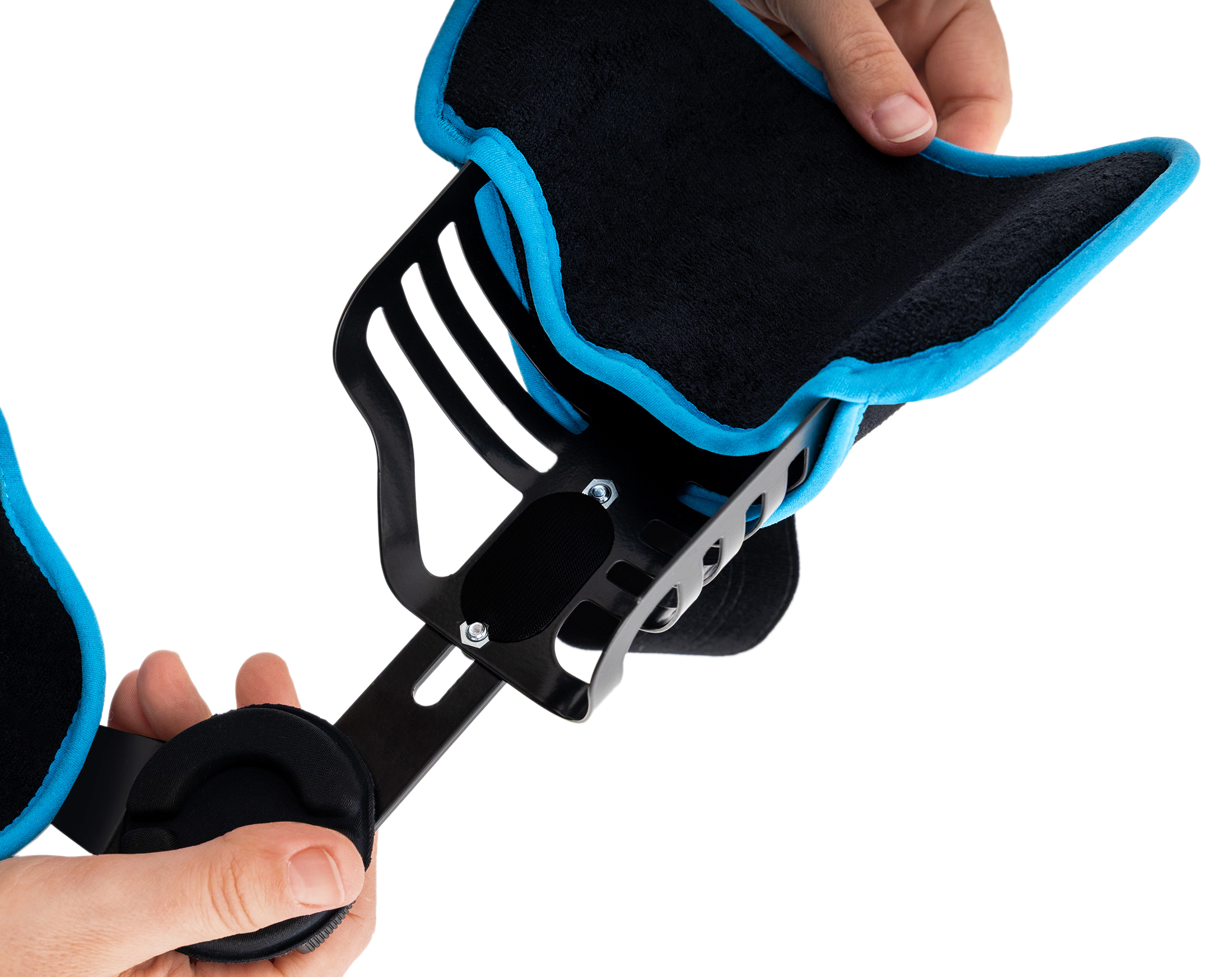

The length of the lateral hinge can be smoothly adjusted, allowing perfect fitting to the actual length of the humerus and forearm bones.

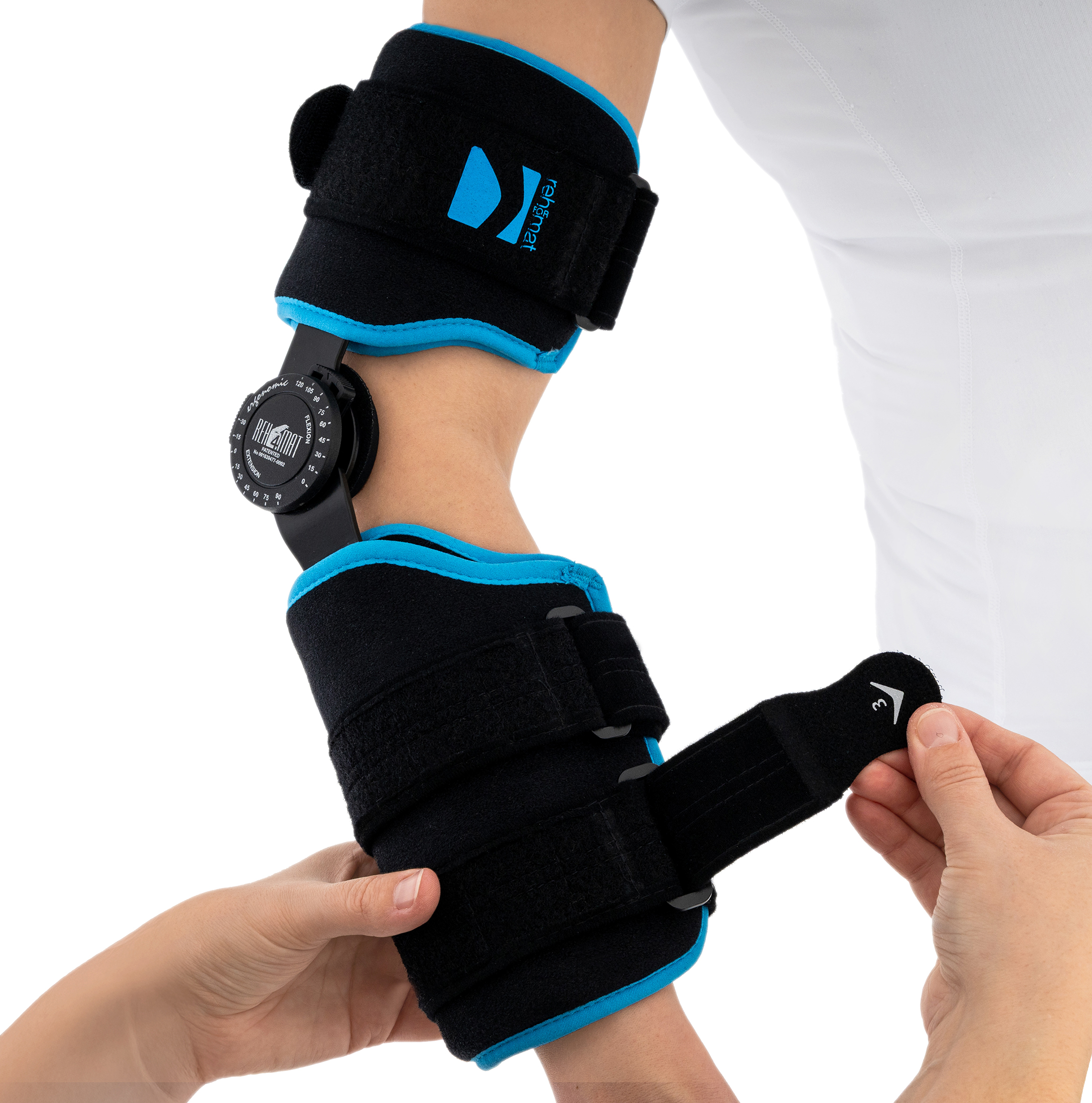

An adjustable circumferential strap system with strong hook-and-loop fasteners enables individual fitting to the arm and forearm circumference, ensuring stability even during increased activity.

Thanks to its wide adjustment range, the AM-SL-04 lateral hinge elbow brace is a universal device that allows precise control of flexion and extension, protecting joint structures from overload and uncontrolled movement.

The AM-SL-04 elbow brace protects the joint against excessive motion, supports the rehabilitation process, and helps prevent recurrent injuries.

The brace should be used in accordance with the recommendations of a doctor or physical therapist. Range-of-motion adjustments should be made gradually, depending on the stage of treatment.

Purpose of use:

• rehabilitation after elbow joint surgery
• elbow dislocations
• ligament injuries (MCL, LCL)
• periarticular fractures (after stabilization)
• post-traumatic conditions requiring gradual joint mobilization
• range-of-motion control during physiotherapy

Size	Arm circumference (A)	Forearm circumference (B)	Distance from elbow to armpit (C)	Distance from elbow to wrist joint (D)	How to measure
Universal	22 – 44 cm	22 – 36 cm	16,5 – 20 cm	22,5 – 28 cm

Fits for Left and Right arm.

Total length of the brace: min 39 cm – max 48 cm

Click on the photo to enlarge

MATERIALS

ActiveDistance II™

ActiveDistance II™ is an active 3-layered fabric made of non-elastic polyamide self-gripping layer, comfort foam and cotton terry. The last one layer is responsible for maintaining your skin dry. This material is skin-friendly and has the Oeko-Tex Standard 100 certificate. Self-gripping function of ActiveDistance II™ allows to fit the braces precisely.

UniPren™

UniPren™ is a universal 3-layer material consisting of an external elastic polyamide cover knit with a self-adhesive function, an internal neoprene foam core and an elastic jersey cover knit. This material is characterized by softness and very high flexibility. A very important advantage of this material is the fact that it is not a knitted product, it does not have thick fibers, so that the weaves of the material do not imprint on the patient's skin and do not cause abrasionsin places of high compression. Products made of UniPren™ are the strongest and most effective stabilizing orthoses available on the market. Self-adhesive function, the raw material makes it much easier to use.

STIFFENINGS

Splint 1RE

Splints 1RE – single axis orthopedic splints, used mainly in knee joint, upper limb and hip joint braces. The characteristic quality of this splint is, apart from wide range of motion adjustment in every 15 degrees, is also hyperextension adjustment in the secured range of -15 and -30 degrees. The splints are characterized by perfect lateral joint stabilization and low weight. The set-up of the angle adjustment clock doesn’t require any tools, and special safety system prevents the change of the angle by unauthorized people. The splints are made of high quality aluminium alloy and plastic with carbon fibre. They are light and neutral to the influence of sweat and salt, properly firm, assuring correct functioning of the device. The splint and its design are patented in European Union by Reh4Mat company.
