Lower-extremity support AM-OSK-O/1R

The wrap around knee brace is made of innovative fabric AeroSpace™.

It has two independent sets of the supporting Velcro tapes. The device is equipped with two side splints, which are made of carbon fibres and consists of special drop lock allowing for ROM adjustment in every 15°. this precise adjustment facilities the rehabilitation process.

The system of splints in wrap around knee brace is arranged in a shape of X letter, which allows to adhere perfectly to the limb and also enables to stabilize the joint precisely. This internal perforation allows skin to breath and reduces overheating. The wrap around construction enables to use the brace by seniors or overweight people.

Purpose of use

AM-OSK-O/1R brace should be applied in cases of:

• knee dislocation,
• knee twist and sprain,
• side instability of the knee joint,
• knee ligaments LCL, MCL and ACL injuries,
• knee ligaments reconstruction,
• other surgeries (orthopedic).

Size	Knee circumference	How to measure
XS*	30 – 34 cm
S	30 – 34 cm
M	34 – 38 cm
L	38 – 42 cm
XL	42 – 46 cm
2XL	46 – 50 cm
3XL	50 – 55 cm

Fits for both knees.

Total length of the product:
S – 3XL: 36 cm
*- products available till the stocks run out

Click on the photo to enlarge

MATERIALS

AeroSpace™

AeroSpace™ is an innovative new generation raw material. It is a distance elastic 3D knitted fabric consisting of two layers of facings and an interlacing that creates the appropriate thickness of the raw material and has relieving properties. The knitwear is made of the highest quality polyester yarn - guaranteeing high mechanical strength and spandex ensuring its proper flexibility. This material is characterized by a very low weight, high flexibility and a very large openwork structure, allowing for very easy drainage of sweat from the body and bringing fresh air to the skin. Products made of this raw material are neutral to the secured joint, do not heat or cool it, but ensure its proper compression and fit and reduce muscle vibrations generated during physical exertion. Its thickness and 3D structure perfectly relieves the orthopedic splints, stays or other elements mounted on the product and guarantees velvety softness to the touch.

STIFFENINGS

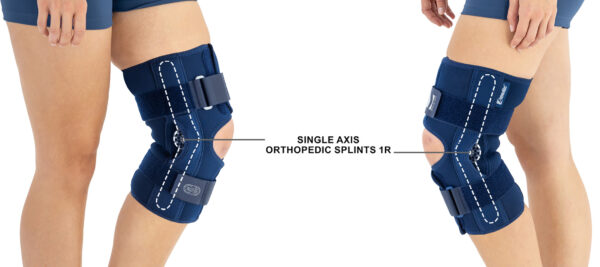

Splint 1R

1R splints – single axis orthopedic splints used in all knee joint and upper limb braces, where apart from adjustment of the flection and extension angle, high lateral stabilization of the joint is not required, but important if low weight of the brace. Due to the low weight the splints are successfully used in all braced for children. They are manufactured with high quality polyamide with carbon fibres, making the splints light and neutral to the influence of sweat and salt, properly firm therefore assuring correct functioning of the device. Adjustment of the flexion and extension angle is performed with special Allen screw in every 15°. Each brace is equipped with an Allen key, which is necessary for adjustment. Standard length of the braces is: 280 and 380 mm. The splint and its design are patented in European Union by Reh4Mat Company.

• Download the splint adjustment instructions

Stiffeners of thin ABS

Stiffeners made of a thin ABS plate are very light and protect the correct shape of the brace, but do not stiffen individual parts of the patient's body. The brace has the correct circumferential shape, but does not have the compensating and stiffening function of the protected joints and other protected parts of the body.

• Declaration of Conformity EC
• Manual
• Manual (other languages)
• Setting up
