Torso support AR-WSP-03

Torso support AR-WSP-03

Laced spine brace is made of unique spatial material called ActiveExpanse™.

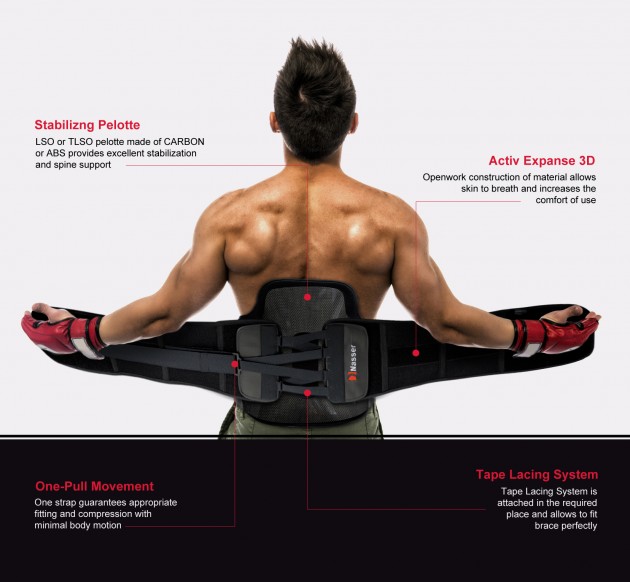

AR-WSP-03 brace is very comfortable because of its transparent construction. The brace consists of two independent anatomic-shaped elements. This construction allows to fit brace precisely and special free space between two elements ventilates the thoracolumbar spine. On the back there are special handles to mount rigid lumbar or thoracolumbar pelotte but on the front there is special pocket for rigid abdominal pelotte installing. The device can be used with or without abdominal pelotte what depends of physician’s recommendations.

The rear part of the brace holds compression system called TapeLacing. This system is added and fastened with Velcro straps in any place according to the preferences. It can be fastened diagonally what is helpful for patients with broad hips or pot belly.

The wide circumferential non-elastic strap is the additional stabilizing element which provides adjustable compression in the lumbosacral spine.

In the front side is it possible to use rigid polymer pelotte what improves the stabilization of the pubic bone.

Is it possible to use rigid lumbar (LSO) or thoracolumbar (TLSO) pelotte according as what condition occurs.

Available types of pelottes:

Profiled lumbar pelotte LSO made of carbon

LSO lumbar support is made of carbon, as a 3D element reflecting the anatomical shape of the torso. The pelotte is made in several sizes, which makes it easier to select it individually to each patient. The pelotte is very thin and flexible, it fits well to the body, it is very light and stiffens the spine properly. It has a lumbar opening that relieves the spine and ensures the supply of air to the skin. It also has additional holes for attaching the product to the lumbar orthosis and Velcro fasteners for attaching the soft lining to relieve the pelotte and improve the comfort of its use. The pelotte is very easy to clean or disinfect, which makes it easier to maintain the proper hygiene level of the orthopedic orthosis.

Profiled thoracolumbar pelotte TLSO made of carbon

AR-WSP-03

TLSO lumbar support is made of carbon, as a 3D element reflecting the anatomical shape of the torso. The pelotte is made in several sizes, which makes it easier to select it individually to each patient. The pelotte is very thin and flexible, it fits well to the body, it is very light and stiffens the spine properly. It has a lumbar opening that relieves the spine and ensures the supply of air to the skin. It also has additional holes for attaching the product to the lumbar orthosis and Velcro fasteners for attaching the soft lining to relieve the pelotte and improve the comfort of its use. The pelotte is very easy to clean or disinfect, which makes it easier to maintain the proper hygiene level of the orthopedic orthosis.

Lumbar pelotte LSO with lumbar lordosis adjustment made of ABS

AR-WSP-03

LSO lumbar support is made as a flat ABS plate. The pelotte has a smooth adjustment of the curvature of the lumbar lordosis, allowing for a very precise adjustment of the lumbar support for a patient. Thanks to this structure, the product works like a custom-made corset. Lumbar adjustment is carried out by means of Velcro tapes interlaced through the openings. The pelotte also has two Velcro tapes on the side elements, allowing for setting their proper curvature. It also has holes for attaching the product to the lumbar orthosis and Velcro fasteners for attaching the soft lining to relieve the pelotte and improve the comfort of its use. The pelotte is very easy to clean or disinfect, which makes it easier to maintain the proper hygiene level of the orthopedic orthosis.

Thoracolumbar pelotte TLSO with lumbar lordosis and thoracic kyphosis adjustment made of ABS

AR-WSP-03

TLSO lumbar support is made as a flat ABS plate. The pelotte has a smooth adjustment of the curvature of the lumbar lordosis, allowing for a very precise adjustment of the lumbar support for a patient. Thanks to this structure, the product works like a custom-made corset. Lumbar adjustment is carried out by means of Velcro tapes interlaced through the openings. The pelotte also has two Velcro tapes on the side elements, allowing for setting their proper curvature. It also has holes for attaching the product to the lumbar orthosis and Velcro fasteners for attaching the soft lining to relieve the pelotte and improve the comfort of its use. The pelotte is very easy to clean or disinfect, which makes it easier to maintain the proper hygiene level of the orthopedic orthosis.

All of the pelottes are equipped with soft lining made of ActiveDistance II™.

Purpose of use

Severe L-S and Th painful syndrome
Multi-level discopathy
Osteoporosis
Spine instability
Lumbar spondylolisthesis
Spinal Compression Fracture
Sciatica
Thoraco and sacrolumbar degeneration
After surgeries (orthopaedics, neurosurgery)
After cast immobilization
Some postural defects

Size	Waist circumference	How to measure
M	75-85 cm (29,5″-33,5″)
L	85-97 cm (33,5″-38,2″)
XL	97-110 cm (38,2″-43,3″)
XXL	110-125 cm (43,3″-49,2″)
XXXL	125-145 cm (49,2″-57,1″)

Przykładowy wygląd wyrobu

MATERIALS

ActiveDistance II™

ActiveDistance II™ is an active 3-layered fabric made of non-elastic polyamide self-gripping layer, comfort foam and cotton terry. The last one layer is responsible for maintaining your skin dry. This material is skin-friendly and has the Oeko-Tex Standard 100 certificate. Self-gripping function of ActiveDistance II™ allows to fit the braces precisely.

ActiveExpanse™

ActiveExpanse™ is an innovative, active 3D lamination with high air permeability. This spacer material is light made of 2 parts: external polyamide durable 3D layer and skin-friendly cotton layer with Oeko-Tex Standard 100 certificate. ActivExpanse™ is not elastic what improves stabilization. External 3D spacer layer is hypoallergenic and provides high air permeability and minimal water and moisture absorption. Our medical devices made of this fabric are very comfortable.

TECHNOLOGICAL SYSTEMS

TLS - TapeLacing Compression System

TapeLacing (TLS)

TapeLacing Compression System was created to adjust the best joint support and stabilization. The system allows to adjust different levels of compression according to patient’s needs. This adjustment is smooth what provides comfort of use the brace.

The TLS System is a combination of metal grommets, nylon tapes and Velcros. The additional equipment is the special element that is easy to attach what allows to modify device’s shape or circumference. You can achieve required compression with a single pull strap. One easy pull securely forms the brace to the patient’s torso and provides intra-abdominal compression, reducing the load on intervertebral discs.

TLS System is the compression solution so you can use it only after putting the brace on the body.

ATTENTION: Our TapeLacing Compression System is very effective with big interaction strength so it’s necessary to use it with caution.

STIFFENINGS

Abdominal pad

The abdominal pad of the orthopedic spine brace is made of ABS. It has an anatomical shape with rounded edges and special longitudinal cuts, thanks to which it is very easy to shape in the horizontal axis and maintains high stiffness in the vertical axis. Such a structure allows the orthosis to easily adjust to the abdominal section of the patient and, thanks to the vertical cuts, the patient's skin breathes as air is supplied to it.

Lumbar ABS stiffenings

Low - LSO support and high - TLSO support are made of ABS. The pads are soft, they easily adapt to the body, stiffening the appropriate section of the spine. They are available in several sizes and are used in orthopedic products as their main stiffening element. The ABS supports have a smooth system of shaping them, along with its full stabilization, made of tapes with velcro fasteners. The tapes on the side elements of the support allow you to set the shape of the pelotte in such a way that it will stabilize the patient's torso on both sides. The middle strap in the low LSO support sets the appropriate level of lumbar lordosis, while the middle strap in the high TLSO support sets the appropriate level of lumbar lordosis and thoracic kyphosis. Additionally, the pads have internal velcro fasteners that allow for attaching soft relief cushions to them, which separate the ABS supports from the patient's body.
