Torso support AR-WSP-02

Torso support AR-WSP-02
4medic-en
TLSOTLSO
Class I medical deviceClass I medical device
EfficiencyEfficiency
InnovativeInnovative
Skin-friendlySkin-friendly
Brand: Code UMDNS:
Code NFZ:

CYGNET

FORMABLE TRUNK CORSET

Description

ARE YOU LOOKING FOR PERFECT SPINE SUPPORT
BUT YOU NEED DIFFERENT LEVELS OF STABILIZATION?
CYGNET WILL SATISFY YOU FOR SURE!

Product description

Special orthopaedic corset CYGNET (AR-WSP-02) is intended for post-operative or after-trauma immediate patient’s supply. This is excellent trunk support in the chronic spine conditions.

CYGNET – provides full-circumferential rigid spine support from thoracic part (scapula area T2/T3) down to sacral part (S1).

TLSO orthosis creates 3-points force distribution which based on the rear forces and front forces.

This solution creates special pressure which extracts upright position, increases the lumbar lordosis and limits the rotation movements. The corset is able to control and release the pain which is connected with anomaly or injury such as: osteoporosis, compression fractures, excessive kyphosis etc.

CYGNET (AR-WSP-02) is 3-functional orthosis, which is changed with patient’s recovery.

FUNCTIONS OF CYGNET

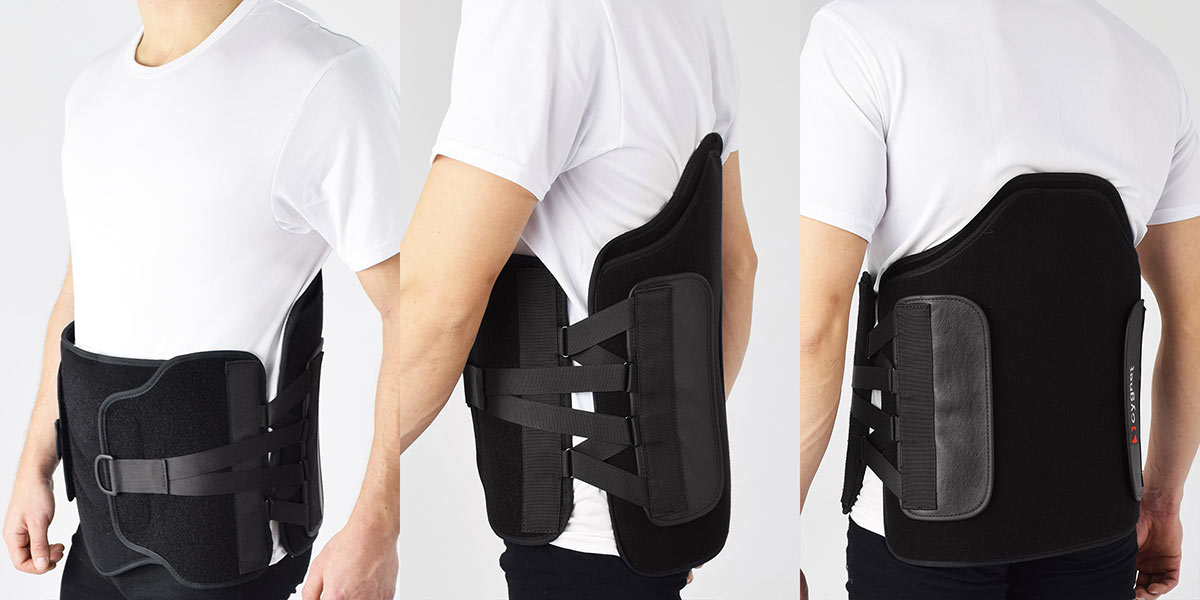

1st STABILIZATION LEVEL (light)

First level of stabilization – (the lightest): formable corset equipped with double compression system TapeLacing.
Third level of stabilization

2nd STABILIZATION LEVEL (medium)

Second level of stabilization – (medium): formable corset equipped with double compression system TapeLacing, spine stabilizer and under-armpits.
Second level of stabilization

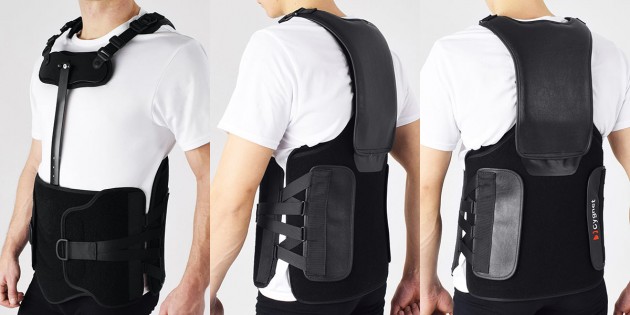

3rd STABILIZATION LEVEL (advanced)

Third level of stabilization – (the strongest): is the full brace equipment comprised: formable corset equipped with double compression system TapeLacing, spine stabilizer, abdominal pelotte and collarbone-pubic stabilizer.
First level of stabilization
CYGNET corset is made of ActiveDistance™ and ActiveDistance II™.

The internal side of the material is covered by cotton. The external material is easy to attach what allows to achieve modular construction and fit the corset to individual patient’s needs.

In the rear part occurs anatomic formable pelotte made of high quality of aluminium. You can form it according to the needs.

Anatomic formable pelotte

Anatomic formable pelotte

In the front part is abdominal insert made of pocket with pubic support connected with collarbone-pubic stabilizer. There are later panels which are attached to the abdominal pelotte and equipped with rigid element which facilitates unstrapping.

Abdominal insert

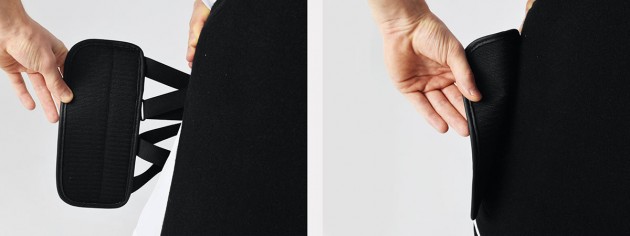

There is compression system TapeLacing allowing to set required compression. This system is attached by Velcro tapes in the required position. It’s great solution for people with abdominal and hip disproportions.

TapeLacing

Spine brace CYGNET has Quick-release system equipped with non-elastic circumferential straps with Velcro ends what allows to putting the brace on and off easy.

Quick-release

The chest pelottes system is equipped with shoulder straps and under-armpits.

The CYGNET is the best modular device on the market. The chest pelottes support thoracic spine as an TLSO. When the patient is in better shape is it possible to not use the chest pelottes. In this option, the brace supports the spine as an LSO.

Purpose of use

– Spine fractures
– pre- and post-Surgical Stabilization
– osteoporosis
– deformed vertebrae
– acute Back Pain
– spondylolithesis
– spondylolysis
– spine Instability
– disc Hernia
– degenerative Spinal pathologies
– rehabilitation and Prevention

Sizes

Size Height from Jugular notch to Suprapubic Waist circumference How to measure
S 42-60 cm
(16,5″-23,6″)
65-85 cm
(25,6″-33,5″)
How to measure
M 50-67 cm
(19,7″-26,4″)
85-110 cm
(33,5″-43,3″)
L 57-74 cm
(22,4″-29,1″)
110-145 cm
(43,3″-57,1″)
Size Total height of the soft element
front rear
S 28 cm (11″) 40 cm (15,7″)
M 32 cm (12,6″) 47 cm (18,5″)
L 57 cm (22,4″)

Technology

MATERIALS

ActiveDistance II™

ActiveDistance II™ is an active 3-layered fabric made of non-elastic polyamide self-gripping layer, comfort foam and cotton terry. The last one layer is responsible for maintaining your skin dry. This material is skin-friendly and has the Oeko-Tex Standard 100 certificate. Self-gripping function of ActiveDistance II™ allows to fit the braces precisely.

ActiveDistance™

ActiveDistance™ is an technical off-loading lamination with 3-layered construction. It’s made of EVA foam double-sided laminated with non-elastic polyamide layer that is easy to attach. This self-gripping function of ActiveDistance™ provides wide range of adjustment and perfect fitting. What is important, ActiveDistance™ is non-elastic fabric so it stabilizes your body in a perfect way. Thanks to using the comfort foam, the device is really soft what influences on the comfort of using it. Waterproof material.

TECHNOLOGICAL SYSTEMS

TLS - TapeLacing Compression System

  TapeLacing (TLS)

TapeLacing Compression System was created to adjust the best joint support and stabilization. The system allows to adjust different levels of compression according to patient’s needs. This adjustment is smooth what provides comfort of use the brace.

The TLS System is a combination of metal grommets, nylon tapes and Velcros. The additional equipment is the special element that is easy to attach what allows to modify device’s shape or circumference. You can achieve required compression with a single pull strap. One easy pull securely forms the brace to the patient’s torso and provides intra-abdominal compression, reducing the load on intervertebral discs.

TLS System is the compression solution so you can use it only after putting the brace on the body.

ATTENTION: Our TapeLacing Compression System is very effective with big interaction strength so it’s necessary to use it with caution.

STIFFENINGS

Abdominal pad

The abdominal pad of the orthopedic spine brace is made of ABS. It has an anatomical shape with rounded edges and special longitudinal cuts, thanks to which it is very easy to shape in the horizontal axis and maintains high stiffness in the vertical axis. Such a structure allows the orthosis to easily adjust to the abdominal section of the patient and, thanks to the vertical cuts, the patient's skin breathes as air is supplied to it.

Abdominal pad

Chest support

The chest stabilizer is used in the most technologically advanced TLSO high orthopedic products as an element of the spine stabilizer. The product consists of a pubic support made of ABS, connected to an aluminum frame with adjustable length and a chest support. The pubic pad is mounted in the pocket of the front brace fastener and has a plastic frame height adjuster, which can be adjusted without the use of tools. The chest support is pivotally connected with the frame, thanks to which it adapts very precisely to the patient's body. In addition, it has two rotating buckles that allow the installation of shoulder straps and Velcro straps that enable the installation of a soft cushion relieving the support from the body. In order to reduce weight, the product was made of aluminum and appropriately shaped to increase its stiffness. In addition, it is hot-coated with a durable powder coating that is indifferent to the patient's skin.

Stiffeners of thin ABS

Stiffeners made of a thin ABS plate are very light and protect the correct shape of the brace, but do not stiffen individual parts of the patient's body. The brace has the correct circumferential shape, but does not have the compensating and stiffening function of the protected joints and other protected parts of the body.

Stiffeners of thin ABS

Setting up

Downloads

Accessories

ACCESSORIES / PRODUCTS TO BE USED WITH

Code AR-WSP-02
Trade Name SUPPORT, TORSO
Model back brace AR-WSP-02
