Lower limb brace OKD-14 DUAL

Lower limb brace OKD-14 DUAL
4medic-en
Lower limb braceLower limb brace
BreathableBreathable
Class I medical deviceClass I medical device
Dial joint 1REDial joint 1RE
Full range of adjustmentFull range of adjustment
InnovativeInnovative
Latex-freeLatex-free
Polycentric joint 2RPolycentric joint 2R
Recommended by specialistsRecommended by specialists
Skin-friendlySkin-friendly
Brand: Code UMDNS:

KNEE AND HIP ORTHOSIS WITH ROM ADJUSTMENT

Description

Flaccid paralysis and paresis

Peripheral nervous system injury may result in flaccid paralysis and deep sensibility disorders. The reason can be infantile paralysis (poliomyelitis), injuries (spine crash or fracture), toxins (alcohol, diabetes) and degeneration conditions.
Poor myotonus (muscle weakness) is typical symptom of peripheral paresis. Disease of peripheral nerves and muscles are characterized by, together with flaccid paralysis, fast and big myatrophy (denervation).

We created knee and hip orthosis OKD-14 for patients who have problems with lower limb stabilization and correct muscles work.

Product description

Knee and hip orthosis OKD-14 with ROM adjustment is comprised of soft hip part and long knee brace. It’s made of Active Distance.

The hip part of orthosis, made of Active Distance, provides circumferential adjustment so this is more universal. The hip part is equipped with soft lateral support, circumferential straps and splint with length adjustment.

In addition, hip brace has drop-lock with ROM adjustment in every 15 degrees. Also, our 1RE splint is 1-axial splint with hypertension control – capability to adjust 15 and 30 degrees of extension. Our lightweight splints are made of high quality aluminium with carbon fibres and provide excellent stabilization.

The second material used in lower limb brace is ACTIVEdistance II.

The internal side of brace is covered by cotton skin-friendly layer with Oeco-Tex Standard 100 certification.

OecoTex standard 100

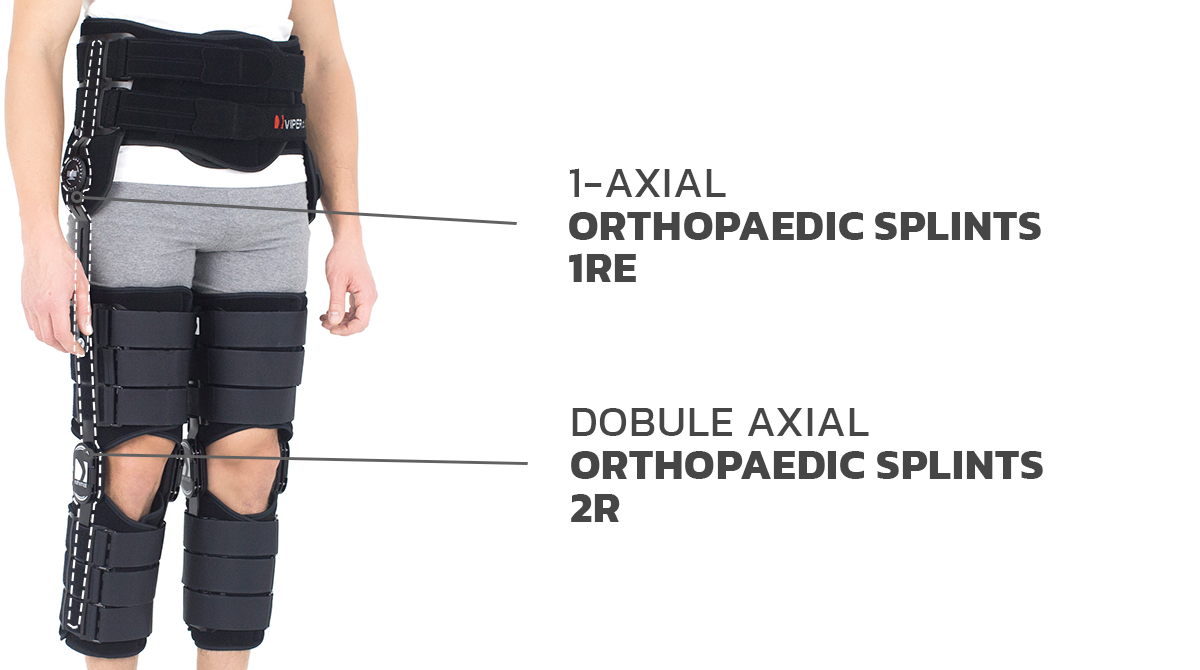

Knee brace is equipped with six circumferential straps and splint 2R or 1RE.
Range of motion can be controlled in 20 degree (2R) and in 15 degree (1RE) increments. Every drop-lock can be stopped in the required range.

The materials are soft but non-elastic. This “stiffness” provides excellent fit and stabilization.
OKD-14 lower limb orthosis can replace traditional orthopaedics plastic splints. Our orthosis is very comfortable and doesn’t cause bedsores or skin lesions.

OKD-14 supports and stabilizes knee and hip joints and provide po-op control. It supports the hip and knee in walk therapy. OKD-14 controls the range of motion in joints and prevents against the contractures.

The OKD-14 orthosis is one-sided in standard. We can make double orthosis (for right and left side together) if it is necessary.

One-sided lower limb brace OKD-14 is used in case of:

  • severe knee and hip instability and degeneration disorders
  • lower limb paresis – in walk therapy
  • after severe knee and hip surgeries where immobilization is necessary
  • prevention and treatment of contractures
  • posture control in rehabilitation

Double lower limb brace OKD-14 is used in case of:

  • flaccid paralysis
  • myelocystocele
  • spinal muscular atrophy
  • muscular dystrophy of lower limbs

Sizes

Size Waist circumference How to measure
Single size min 75 cm – max 125 cm
(min 29,5″ – max 49,2″)
Size (A) Thigh circumference 15 cm above the patellacircumference 15 cm above the patella (B) Calf circumference 15 cm below the patella (C) Distance between knee joint interstice and groin How to take measure
S min 40 cm – max 75 cm
(min 15,7″ – 29,5″)
min 30 cm – max 55 cm
(min 11,8″ – max 21,6″)
27 cm – 37 cm
(10,6″ – 14,5″)
M 33 cm – 43 cm
(13″-16,9″)
L 36 cm – 46 cm
(14,2″ – 18,1″)

Maximum user weight up to 75kg.

Gallery

Click on the photo to enlarge

OKD-14OKD-14OKD-14OKD-14OKD-14OKD-14

Technology

MATERIALS

ActiveDistance II™

ActiveDistance II™ is an active 3-layered fabric made of non-elastic polyamide self-gripping layer, comfort foam and cotton terry. The last one layer is responsible for maintaining your skin dry. This material is skin-friendly and has the Oeko-Tex Standard 100 certificate. Self-gripping function of ActiveDistance II™ allows to fit the braces precisely.

ActiveDistance™

ActiveDistance™ is an technical off-loading lamination with 3-layered construction. It’s made of EVA foam double-sided laminated with non-elastic polyamide layer that is easy to attach. This self-gripping function of ActiveDistance™ provides wide range of adjustment and perfect fitting. What is important, ActiveDistance™ is non-elastic fabric so it stabilizes your body in a perfect way. Thanks to using the comfort foam, the device is really soft what influences on the comfort of using it. Waterproof material.

STIFFENINGS

Splint 1RE

Splints 1RE – single axis orthopedic splints, used mainly in knee joint, upper limb and hip joint braces. The characteristic quality of this splint is, apart from wide range of motion adjustment in every 15 degrees, is also hyperextension adjustment in the secured range of -15 and -30 degrees. The splints are characterized by perfect lateral joint stabilization and low weight. The set-up of the angle adjustment clock doesn’t require any tools, and special safety system prevents the change of the angle by unauthorized people. The splints are made of high quality aluminium alloy and plastic with carbon fibre. They are light and neutral to the influence of sweat and salt, properly firm, assuring correct functioning of the device. The splint and its design are patented in European Union by Reh4Mat company.

Splints 1RE

Splint 2R

Splints 2R – double axis polycentric splints, with rack gear which reflects the anatomic knee movement. Such splints are used in all knee joint braces where apart from angle adjustment lateral joint stabilization is also important. The splints are manufactured with high quality of aluminium alloy with sanded, durable cover which is neutral to the influence of sweat and salt. Required flexion and extension angle in every 20° is set by using the special pins. The splints are equipped with special oval covers to prevent the pins from falling out as well as from changing of the angle by unauthorized people. Standard length of the splints is 390 mm, but the braces with longer splints are additionally equipped with lateral stabilization of the knee joint. The splint and its design are patented in European Union by Reh4Mat Company. Splints 2RRack gearing Splints 2R

Setting up

Downloads

Accessories

ACCESSORIES / PRODUCTS TO BE USED WITH

Code OKD-14 DUAL
Trade Name SUPPORT, LOWER-EXTREMITY
Model SUPPORT, LOWER-EXTREMITY OKD-14 DUAL

ON OUR WEBSITE WE PRESENT MEDICAL DEVICES.
USE THEM ACCORDING TO THE INSTRUCTIONS FOR USE OR LABEL.

CEMDClass I medical device in accordance with Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017. on medical devices.

MANUFACTURER / ADVERTISING ENTITY: REH4MAT Sp. z o.o.
